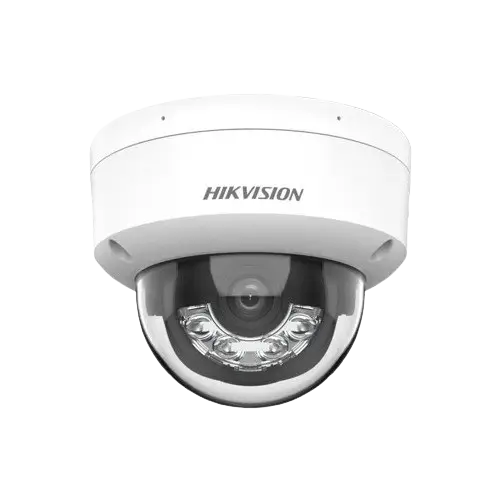

Camera
|
|
|
Image Sensor
|
1/2.9" Progressive Scan CMOS
|
|
|
Max. Resolution
|
2688 × 1520
|
|
|
Min. Illumination
|
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with light
|
|
|
Shutter Time
|
1/3 s to 1/100,000 s
|
|
|
Day & Night
|
IR cut filter
|
|
|
Angle Adjustment
|
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
|
|
|
Lens
|
|
|
Lens Type
|
Fixed focal lens, 2.8 mm
|
|
|
Focal Length & FOV
|
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122°
|
|
|
Lens Mount
|
M12
|
|
|
Iris Type
|
Fixed
|
|
|
Aperture
|
F1.6
|
|
|
Depth of Field
|
2.8 mm: 1.4 m to ∞
|
|
|
DORI
|
|
|
DORI
|
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
|
|
|
Illuminator
|
|
|
Supplement Light Type
|
IR, White Light
|
|
|
Supplement Light Range
|
Up to 30 m
|
|
|
Smart Supplement Light
|
Yes
|
|
|
IR Wavelength
|
850 nm
|
|
|
Video
|
|
|
Main Stream
|
50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
|
|
|
Sub-Stream
|
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
|
|
|
Third Stream
|
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
|
|
|
Video Compression
|
Main stream: H.265 / H.264 / H.264+ / H.265+,
Sub-stream: H.265 / H.264 / MJPEG,
Third stream: H.265 / H.264,
*Third stream is supported under certain settings.
|
|
|
Video Bit Rate
|
32 Kbps to 8 Mbps
|
|
|
H.264 Type
|
Baseline Profile, Main Profile, High Profile
|
|
|
H.265 Type
|
Main Profile
|
|
|
Scalable Video Coding (SVC)
|
H.264 and H.265 encoding
|
|
|
Bit Rate Control
|
CBR, VBR
|
|
|
Region of Interest (ROI)
|
1 fixed region for main stream and sub-stream
|
|
|
Target Cropping
|
Yes
|
|
|
Network
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
|
|
API
|
ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
|
|
Security
|
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
|
|
User/Host
|
Up to 32 users
3 user levels: administrator, operator, and user
|
|
Network Storage
|
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
|
|
|
|
Image Parameters Switch
|
Yes
|
|
Day/Night Switch
|
Day, Night, Auto, Schedule
|
|
Wide Dynamic Range (WDR)
|
120 dB
|
|
SNR
|
≥ 52 dB
|
|
Image Enhancement
|
BLC, HLC, 3D DNR
|
|
Privacy Mask
|
8 programmable polygon privacy masks
|
|
Interface
|
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
|
On-Board Storage
|
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
|
|
Alarm
|
-S: 1 input, 1 output (max. 12 VDC, 30 mA)
|
|
Reset Key
|
Yes
|
|
Audio
|
Built-in Microphone:
-2U: Arrayed dual-microphone
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
|
|
Event
|
|
Basic Event
|
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
|
|
Linkage
|
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture, -S: trigger alarm output
|
|
|
Deep Learning Function
|
|
|
Perimeter Protection
|
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
|
|
|
General
|
|
|
Power
|
12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.5 W
|
|
|
Material
|
Base: aluminum alloy, cover: aluminum alloy
|
|
|
Dimension
|
Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
|
|
|
Package Dimension
|
150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
|
|
|
Weight
|
Approx. 600 g (1.3 lb.)
|
|
|
With Package Weight
|
Approx. 830 g (1.8 lb.)
|
|
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
Startup and Operating Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
General Function
|
Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
|
|
|
Approval
|
|
|
EMC
|
CE-EMC: EN 55032: 2015+A1: 2020, EN 50130-4: 2011+A1: 2014, EN IEC 61000-3-2: 2019+A1: 2021, EN 61000-3-:2013+A1: 2019+A2: 2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
|
|
|
Safety
|
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
|
|
|
Environment
|
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
|
|
|
Protection
|
IP67: IEC 60529-2013, IK10: IEC 62262:2002
|
|
