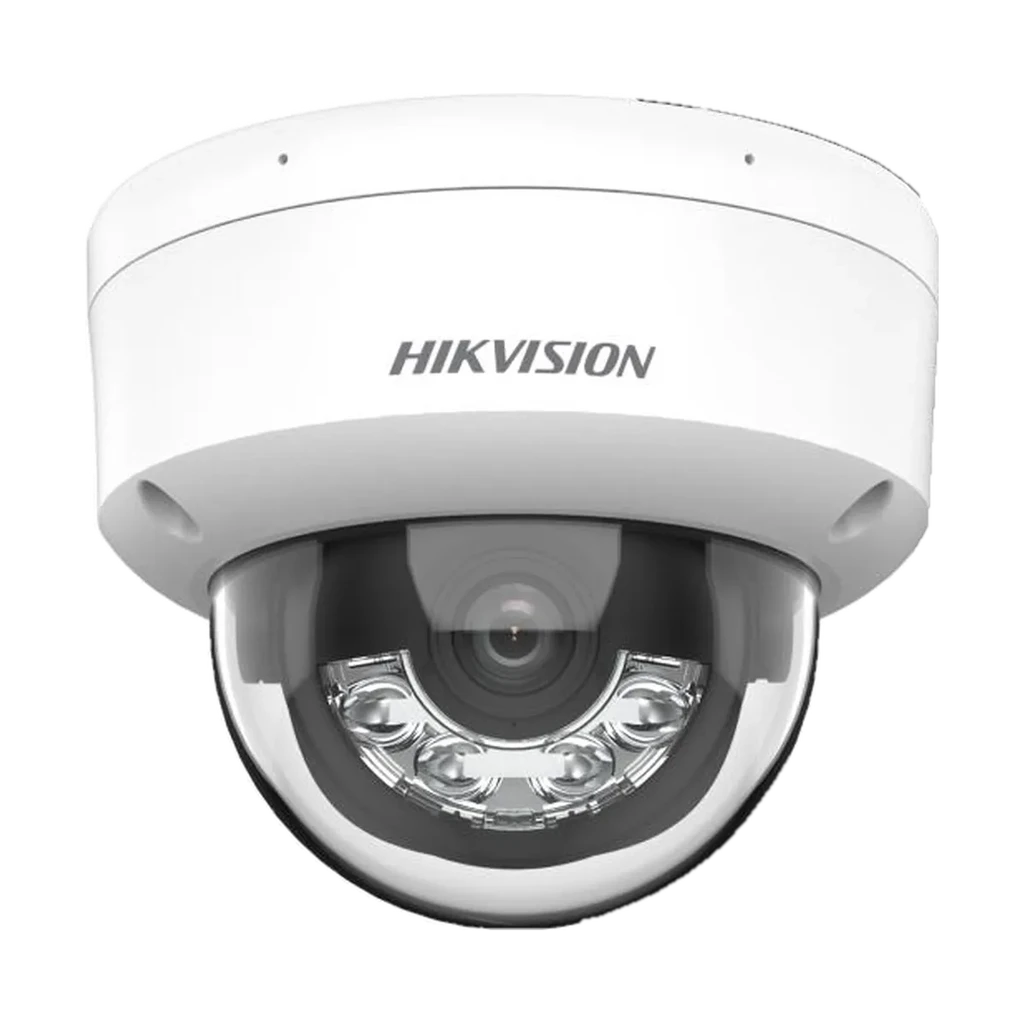

DS-2CD2163G2-LIS2U
6MP Smart Hybrid Light Dome Camera, 2.8 mm lens
DS-2CD2163G2-LIS2U
6MP Smart Hybrid Light Dome Camera, 2.8 mm lens
Key specs
- 6MP (3200 × 1800), 2.8 mm fixed lens
- Smart Hybrid Light (IR and white light), up to 30 m at night
- AcuSense: intrusion, line crossing
- Built-in dual-array microphone
- Audio and alarm terminals
- microSD up to 512 GB
- H.265+ compression
- IP67, IK10
- 12 VDC or PoE power
|
Camera |
|
|
Image Sensor |
1/2.4" Progressive Scan CMOS |
|
Max. Resolution |
3200 × 1800 |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|
Lens |
|
|
Lens Type |
Fixed focal length, 2.8 mm |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F1.6 |
|
DORI |
|
|
DORI |
2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
Up to 30 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
|
Video Compression |
Main
stream: H.265 / H.264 / H.264+ / H.265+ Third stream: H.265 / H.264 *Third stream is supported under certain settings. |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile / Main Profile / High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Audio |
|
|
Audio Compression |
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 16 Kbps to 64 Kbps (AAC-LC) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) |
|
Audio Sampling Rate |
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
|
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Wide Dynamic Range (WDR) |
120 dB |
|
SNR |
≥ 52 dB |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB |
|
Built-in Microphone |
Yes |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
|
Smart Event |
Line crossing detection, intrusion detection ,Supports human and vehicle targets classification, Face detection |
|
Linkage |
Upload to FTP / memory card / NAS, notify surveillance center, trigger recording, trigger capture, send email |
|
General |
|
|
Power |
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
|
Material |
Aluminum alloy body Bubble: plastic |
|
Dimension |
Ø121.4 mm × 92.2 mm (Ø4.8" × 3.7") |
|
Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
|
Weight |
Approx. 440 g (1.0 lb.) |
|
With Package Weight |
Approx. 670 g (1.47 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
General Function |
Heartbeat, mirror, password reset via email, pixel counter, anti-flicker |
|
Approval |
|
|
EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1): 2010+A1:2013+A2: 2015) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002) |
Know before you buy
Quick answers about the DS-2CD2163G2-LIS2U 2.8mm, and how it compares.
1 Line or 2 Line: which one do I need?
1 Line (Value Series): the body is often plastic or part plastic (it differs by model, so check the specs), with Motion Detection 2.0 or 3.0 for people and vehicle alerts. Good for homes, shops and small offices.
2 Line (Pro Series): metal body (some parts, like the sun shade, are plastic), bigger sensor, longer night range and perimeter alarms such as line crossing and intrusion. Good for factories, warehouses and any site with a wall or fence.
G2 or G3: what changes?
G3 is the newer generation. It cleans night grain and glare before detection, so headlights and reflections cause far fewer false alarms (Hikvision states up to 80% fewer). It also saves search tags with the video for AcuSeek. G2 is still a good camera when budget decides.
What is Smart Hybrid Light?
The camera has two lights. In the dark it uses invisible IR and records in black and white. When it detects a person or vehicle, it turns on white light and records in colour. You can also set it to IR only or white light only.
What do Motion Detection, AcuSense, perimeter protection, AcuSearch and AcuSeek mean?
- Motion Detection 2.0 / 3.0: alerts only for people and vehicles, not cats, leaves or rain. 3.0 also ignores headlights.
- AcuSense: tells people and vehicles apart, and marks the recordings so you can play back only those clips.
- Perimeter protection: an alarm when someone crosses a line you draw or enters an area. Built into 2 Line cameras.
- AcuSearch: click a person in old video and see every clip with them (Pro I NVR or higher).
- AcuSeek: search video by typing words, like "white car at the gate" (G3 cameras with a VPro or DeepinMind NVR).
What does the camera do, and what does the NVR add?
The camera detects; the NVR records and helps you find clips. A Hikvision AI NVR (NXI) can also add AI to older cameras: people and vehicle alerts on all channels, and line crossing or face recognition on 1 or 2 cameras. This camera has AcuSense built in, so it does not use up the NVR's AI.
Which Hikvision NVR should I pair it with?
Any Hikvision NVR records it. Value (NI-Q) for basic recording. Pro K (NXI-K) adds people and vehicle playback, AI for older cameras and face recognition on a few cameras. Pro I (NXI-I) adds AcuSearch. VPro adds AcuSeek. DeepinMind runs AI on many channels. Our engineers size channels and storage with your quote.
Can this camera recognise faces?
This camera detects faces (it knows a face is in the picture), but it does not save face photos itself. A Hikvision AI NVR (NXI-K or higher) can capture and recognise faces from it on a limited number of cameras. For good results, people should face the camera at head height, with light on their faces.
What happens to my recordings if a hard disk fails or the NVR is stolen?
With a microSD card in the camera, the last days of video stay inside the camera, even if the hard disk fails or thieves take the NVR. If the network drops, the camera records to the card and the NVR copies the gap back later. On the NVR side, RAID models (86xx, 96xx) lose nothing when one disk fails; other NVRs lose only the video on the failed disk.
