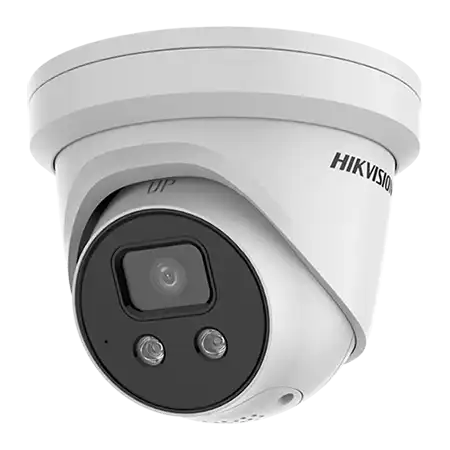

DS-2CD2346G2-ISU/SL 2.8mm

DS-2CD2346G2-ISU/SL 2.8mm

Hikvision 4MP AcuSense Camera, Strobe Light and Audible Warning Fixed Turret Network Camera, 1/3" Progressive Scan CMOS, H.265+ / H.265 / H.264+ / H.264, Powered by Darkfighter technology, Focus on human and vehicle targets classification based on deep learning, Color: 0.003 lux @(F1.4, AGC ON), 0 lux with IR, 25fps/30fps (2688×1520,2304×1296,1920×1080), VCA functions, 3 streams, 3D DNR, BLC, ICR, EXIR, DC12V&PoE, Built-in micro SD/SDHC/SDXC slot (Up to 256GB Supported), Active strobe light and audio alarm to warn intruders off, Audio/Alarm I/O, Water and dust resistant (IP67).

  • Type
  • Shape
  • Resolution
  • Audio Input / Output
  • Technology
  • Advance Features

DS-2CD2346G2-ISU/SL

DS-2CD2346G2-ISU/SL




Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens

Iris Type

Fixed

Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°

Aperture

F1.4

Lens Mount

M12

DORI

DORI

2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

Illuminator

Supplement Light Type

IR

IR Range

Up to 30 m

IR Wavelength

Yes

Smart Supplement Light

Yes

Visual Alarm

Yes

Video

Max. Resolution

2688 × 1520

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)



Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.





Video Compression

Main stream: H.265 / H.264 / H.265+ / H.264+
 Sub-stream: H.265 / H.264
Third stream: H.265 / H.264

*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile / Main Profile / High Profile

H.265 Type

Main Profile

H.264+

Main Stream supports

H.265+

Main stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

Audio Compression

G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC

Audio Bit Rate

64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC)

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

User/Host

Up to 32 users. 3 user levels: administrator, operator and user



Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface





Network Storage

MicroSD / SDHC / SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client

iVMS-4200, Hik-Connect, Hik-Central


SNR

≥ 52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Built-in Microphone

Yes

Built-in Speaker

Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.

On-Board Storage

Built-in micro SD / SDHC / SDXC slot, up to 256 GB

Hardware Reset

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Scene change detection

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

Linkage Method

Upload to NAS / memory card / FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email

General Function

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Software Reset

Yes

Firmware Version

V5.5.112

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.65 A, max. 7.8 W

PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.8 W

Power Interface

Ø5.5 mm coaxial power plug

Camera Material

Metal except for trim ring

Camera Dimension

Ø138.3 mm × 124.5 mm (Ø5.4" × 4.9")

Package Dimension

170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")

Camera Weight

Approx. 825 g (1.8 lb.)

With Package Weight

Approx. 1120 g (2.5 lb.)

Approval



EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN

61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC

(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)





Safety

UL (UL 60950-1);

CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );

CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);

LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)

Application Scenarios

Home & Villas




Monitoring Centers




Factories & Offices




Restricted Areas
