DS-2CD2543G2-IWS 2.8mm

DS-2CD2543G2-IWS 2.8mm

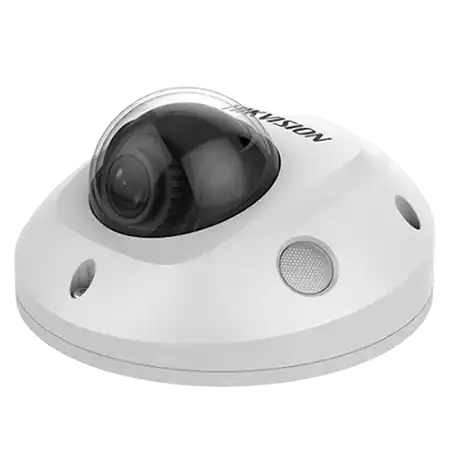

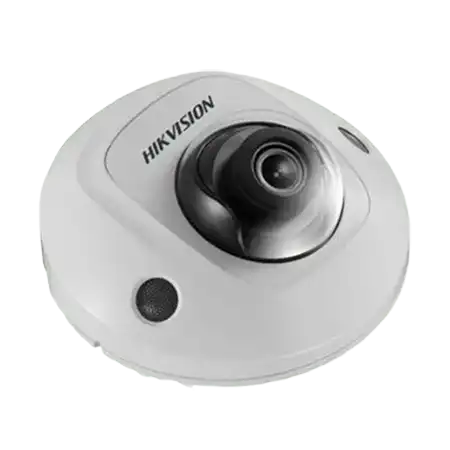

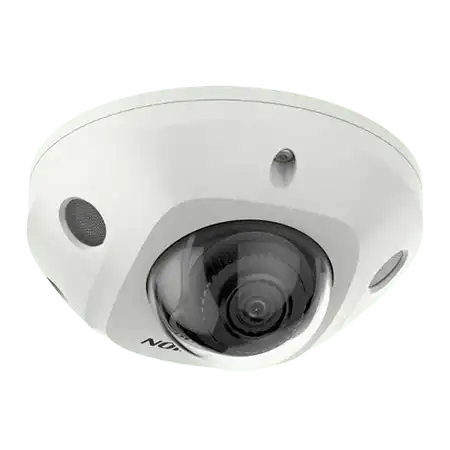

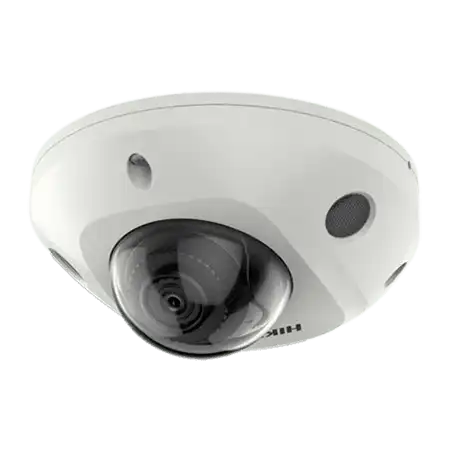

Hikvision DS-2CD2543G2-IWS 4MP AcuSense Built-in Mic Fixed Mini Dome Wi-Fi Network Camera, Focus on human and vehicle targets classification based on deep learning, H.265+ compression technology, audio and alarm interface, 1/3" Progressive Scan CMOS, 2688 × 1520, Up to 30m IR Range, 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), 120 dB WDR, BLC, HLC, 3D DNR, Built-in memory card slot, 12 VDC ± 25%, IP67, IK8.

AcuSense Mini Dome

Hikvision DS-2CD2543G2-IWS 4MP Built-in Mic Mini Dome Wi-Fi Network Camera

IR Range

Up to 30m IR Range

Interface

Alarm I/O, Audio I/O, Built-in Wi-Fi,

Built-in MicroSD/SDHC/SDXC slot,

Frame Rate

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Smart Features

120dB WDR, 3D DNR, BLC, ROI, HLC, Day & Night with ICR

Protection Level

IK08, IP67

Smart Event

Line crossing detection, Intrusion detection, Face detection

Motion detection, Video tampering alarm, Exception, Linkage Method

Video Compression

Main stream: H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Shutter Speed

1/3 s to 1/100,000 s

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Day & Night

IR cut filter

Angle Adjustment

Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 mm

Focal Length & FOV

2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

Depth of Field

2.8 mm: 1.4 m to

4 mm: 1.6 m to

DORI

DORI

2.8 mm, D: 64 m, O: 25 m, R: 13 m, I: 6 m

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

Main stream: H.265 / H.264 / H.265+ / H.264+

Sub-stream: H.265 / H.264

Third stream: H.265 / H.264

*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile / Main Profile / High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

Audio Compression

G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32-192 Kbps (MP2L2) / 8-320 Kbps (MP3) / 16-64 Kbps (AAC-LC)

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Wi-Fi

Encryption Mode

-W: 64/128-bit WEP, WPA-EAP / WPA2-EAP, WPA-PSK / WPA2-PSK

Wi-Fi Protocol

-W:

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM

Frequency Range

-W: 2.4 GHz to 2.4835 GHz

Channel Bandwidth

-W: 20/40 MHz

Modulation

-W:

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM

Transfer Rate

-W:

802.11b: 11 Mbps

802.11g: 54 Mbps

802.11n: up to 300 Mbps

Wireless Range

-W: Up to 80 m (The performance varies based on actual environment)


Wide Dynamic Range (WDR)

120 dB

SNR

52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD card

Built-in Microphone

Yes

Audio

-IS/IWS:

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output

impedance: 100 Ω, interface type: non-equilibrium

Alarm

-IS/IWS:

1 input, 1 output (max. 12 VDC, 20 mA)

Reset Key

Yes

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Line crossing detection, intrusion detection, Face detection

Linkage

Upload to FTP / NAS / memory card, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function

Perimeter Protection

Line crossing, intrusion

Support alarm triggering by specified target types (human and vehicle)

General



Power

-IS:

12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W

-IWS:

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W

Camera Material

Base: aluminum, cover: plastic

Camera Dimension

Ø110 mm × 57.4 mm (Ø 4.3" × 2.3")

Package Dimension

134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

Camera Weight

Approx. 380 g (0.8 lb.)

With Package Weight

Approx. 615 g (1.4 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating

Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Approval

RF

-W:

FCC ID (FCC Part 15.247(BT or 2.4G));

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))

EMC

FCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN

50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)

Safety

UL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment

CE-RoHS (2011/65/EU) WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)

Electrical Safety Protection

IP67 (IEC 60529-2013)

IK8 (IEC 62262:2002)
