DS-2CD2746G2-IZS 2.8-12mm
DS-2CD2746G2-IZS 2.8-12mm

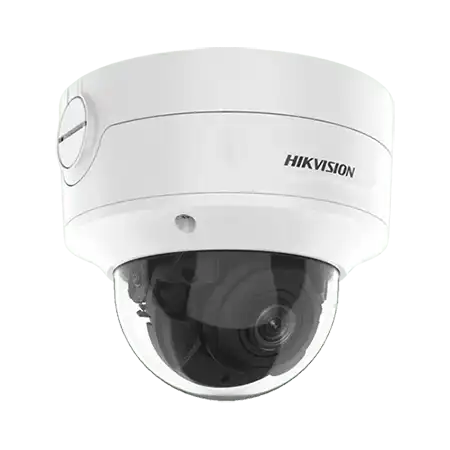

Hikvision DS-2CD2746G2-IZS 4MP AcuSense Motorized Varifocal Dome Network Camera, 1/3" Progressive Scan CMOS, Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR, Shutter Speed: 1/3 s to 1/100,000 s, Excellent low-light performance with powered-by-DarkFighter technology, Clear imaging against strong backlight due to 120 dB true WDR technology, Efficient H.265+ compression technology, Focus on human and vehicle targets classification based on deep learning, Audio and alarm interface available, Water and dust resistant (IP66) and vandal-resistant (IK10).
AcuSense Camera
Hikvision DS-2CD2746G2-IZS 4MP AcuSense Motorized Varifocal Dome Camera
IR Range
Up to 40m Supplement Light Range
Frame Rate
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Smart Features
120dB WDR, 3D DNR, BLC, ROI
Deep Learning
Focus on human and vehicle targets classification based on deep learning
On-Board Storage
Built-in memory card slot, support microSD card, up to 512 GB
Video Compression
Main stream: H.265+/H.265
Sub stream: H.265/H.264/MJPEG
Protection Level
Water and dust resistant (IP66) and vandal-resistant (IK10)
Camera |
|
Image Sensor |
1/3" Progressive Scan CMOS |
Min. Illumination |
Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
Shutter Speed |
1/3 s to 1/100,000 s |
Day & Night |
IR cut filter |
Slow Shutter |
Yes |
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
P/N |
P/N |
Wide Dynamic Range |
120 dB |
Power-off Memory |
Yes |
Lens |
|
Lens Type |
Varifocal lens, motor-driven lens, 2.8 to 12 mm |
Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° |
Aperture |
F1.4 |
Lens Mount |
Ø14 |
Iris Type |
Fixed |
DORI |
|
DORI |
2.8 to 12 mm: Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m |
Illuminator |
|
IR Range |
Up to 40 m |
IR Wavelength |
Yes |
Smart Supplement Light |
Yes |
Supplement Light Type |
IR |
Video |
|
Max. Resolution |
2688 × 1520 |
Main Stream |
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
Video Compression |
Main stream: H.265 /H .264 / H.265+ / H.264+ Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 *Third stream is supported under certain settings. |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
Baseline Profile / Main Profile / High Profile |
H.265 Type |
Main Profile |
H.264+ |
Main Stream supports |
H.265+ |
Main stream supports |
Bit Rate Control |
CBR/VBR |
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
Audio |
|
Environment Noise Filtering |
Yes |
Audio Sampling Rate |
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
Audio Compression |
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
Audio Bit Rate |
64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC) |
Network |
|
Simultaneous Live View |
Up to 6 channels |
API |
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
Image |
|
SNR |
≥ 52 dB |
Day/Night Switch |
Day, Night, Auto, Schedule |
Image Enhancement |
BLC, HLC, 3D DNR |
Image Parameters Switch |
Yes |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface |
|
Alarm |
1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
Audio |
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
On-Board Storage |
Built-in microSD / SDHC / SDXC slot, up to 512 GB |
Hardware Reset |
Yes |
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event |
|
Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
Smart Event |
Scene change detection |
Deep Learning Function |
|
Face Capture |
Yes |
Perimeter Protection |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
General |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25% PoE: 802.3af, Class 3 |
Power Consumption and Current |
12 VDC, 0.88 A, max. 10.5 W PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W |
Power Interface |
Ø5.5 mm coaxial power plug |
Camera Material |
Metal |
Camera Dimension |
Ø153.5 mm× 133.1 mm (Ø6.0" × 5.2") |
Package Dimension |
244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8") |
Camera Weight |
Approx. 845 g (1.9 lb.) |
With Package Weight |
Approx. 1714 g (3.8 lb.) |
Linkage Method |
Upload to NAS / memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning |
General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Software Reset |
Yes |
Approval |
|
EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1) |
Environment |
CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
Protection |
IP66 (IEC 60529-2013), IK10 (IEC 62262:2002) |
