DS-2CD2783G2-LIZS2U

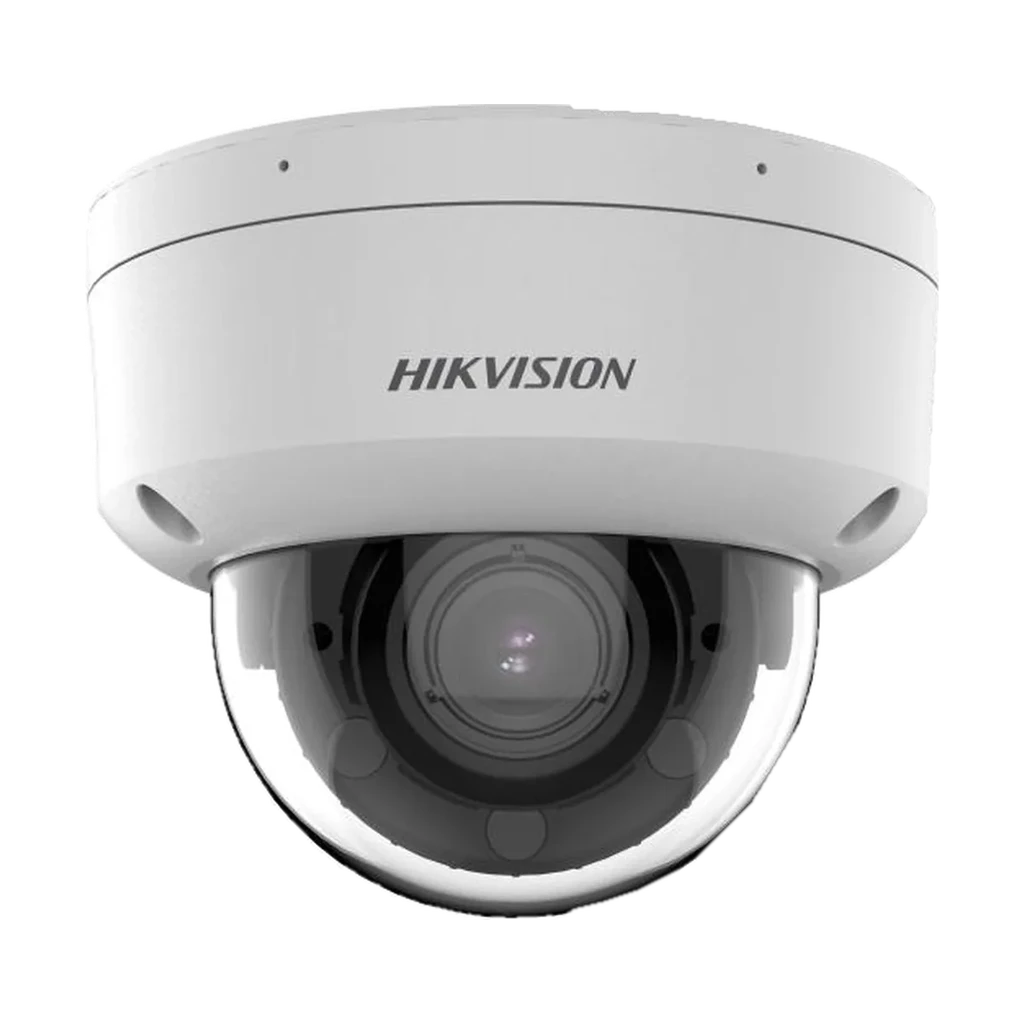

8MP Smart Hybrid Light Motorized Varifocal Dome Camera, 2.8 to 12 mm lens
DS-2CD2783G2-LIZS2U
8MP Smart Hybrid Light Motorized Varifocal Dome Camera, 2.8 to 12 mm lens
Key specs
- 8MP (3840 × 2160), 2.8 to 12 mm motorized varifocal lens
- Smart Hybrid Light (IR and white light), up to 40 m at night
- AcuSense: intrusion, line crossing
- Built-in dual-array microphone
- Audio and alarm terminals
- microSD up to 512 GB
- H.265+ compression
- IP67, IK10
- 12 VDC or PoE power
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 106.5° to 30.2°, vertical FOV 55.7° to 17°, diagonal FOV 128.5° to 34.7° |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 to 12 mm: D: 88.3 m to 289.7 m, O: 35 m to 114.9 m, R: 17.7 m to 57.9 m, I: 8.8 m to 29.0 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 |
| Audio | |
| Environment Noise Filtering | Yes |
| Network | |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Arrayed dual-microphone |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (supports alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Face detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Deep Learning Function | |
| Perimeter Protection | Line crossing, intrusion; supports alarm triggering by specified target types (human and vehicle) |
| General | |
| Power | 12 VDC ± 25%, 0.88 A, max. 10.56 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Protection | IP67: IEC 60529-2013; IK10: IEC 62262:2002 |
| Material | Metal |
| Dimension | Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84") |
| Weight | Approx. 620 g (1.4 lb.) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Source: Hikvision datasheet.
Know before you buy
Quick answers about the DS-2CD2783G2-LIZS2U 2.8-12mm, and how it compares.
1 Line or 2 Line: which one do I need?
1 Line (Value Series): the body is often plastic or part plastic (it differs by model, so check the specs), with Motion Detection 2.0 or 3.0 for people and vehicle alerts. Good for homes, shops and small offices.
2 Line (Pro Series): metal body (some parts, like the sun shade, are plastic), bigger sensor, longer night range and perimeter alarms such as line crossing and intrusion. Good for factories, warehouses and any site with a wall or fence.
G2 or G3: what changes?
G3 is the newer generation. It cleans night grain and glare before detection, so headlights and reflections cause far fewer false alarms (Hikvision states up to 80% fewer). It also saves search tags with the video for AcuSeek. G2 is still a good camera when budget decides.
What is Smart Hybrid Light?
The camera has two lights. In the dark it uses invisible IR and records in black and white. When it detects a person or vehicle, it turns on white light and records in colour. You can also set it to IR only or white light only.
What do Motion Detection, AcuSense, perimeter protection, AcuSearch and AcuSeek mean?
- Motion Detection 2.0 / 3.0: alerts only for people and vehicles, not cats, leaves or rain. 3.0 also ignores headlights.
- AcuSense: tells people and vehicles apart, and marks the recordings so you can play back only those clips.
- Perimeter protection: an alarm when someone crosses a line you draw or enters an area. Built into 2 Line cameras.
- AcuSearch: click a person in old video and see every clip with them (Pro I NVR or higher).
- AcuSeek: search video by typing words, like "white car at the gate" (G3 cameras with a VPro or DeepinMind NVR).
What does the camera do, and what does the NVR add?
The camera detects; the NVR records and helps you find clips. A Hikvision AI NVR (NXI) can also add AI to older cameras: people and vehicle alerts on all channels, and line crossing or face recognition on 1 or 2 cameras. This camera has AcuSense built in, so it does not use up the NVR's AI.
Which Hikvision NVR should I pair it with?
Any Hikvision NVR records it. Value (NI-Q) for basic recording. Pro K (NXI-K) adds people and vehicle playback, AI for older cameras and face recognition on a few cameras. Pro I (NXI-I) adds AcuSearch. VPro adds AcuSeek. DeepinMind runs AI on many channels. Our engineers size channels and storage with your quote.
Can this camera recognise faces?
This camera detects faces (it knows a face is in the picture), but it does not save face photos itself. A Hikvision AI NVR (NXI-K or higher) can capture and recognise faces from it on a limited number of cameras. For good results, people should face the camera at head height, with light on their faces.
What happens to my recordings if a hard disk fails or the NVR is stolen?
With a microSD card in the camera, the last days of video stay inside the camera, even if the hard disk fails or thieves take the NVR. If the network drops, the camera records to the card and the NVR copies the gap back later. On the NVR side, RAID models (86xx, 96xx) lose nothing when one disk fails; other NVRs lose only the video on the failed disk.
Can I buy this camera online?
Hikvision IP cameras are installed products, so we start with a free pre-sales consultation: our engineers suggest the cameras, recorder and storage for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year carry-in warranty.
