DS-2CD2955FWD-IS 1.05mm

DS-2CD2955FWD-IS 1.05mm

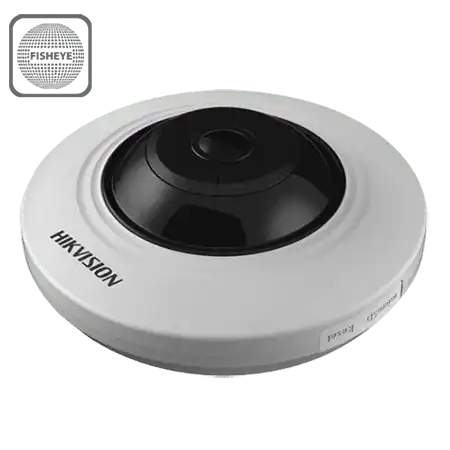

Hikvision 5MP Fisheye Fixed Dome Network Camera, 180° fisheye view, H.265+, WDR /3D DNR /Backlight Compensation /Defog, 25fps (2560 × 1920, 2048 × 1536, 1280 × 960), SD Card, Alarm/Audio I/O

Resolution

5 MP (2560x1920) Fisheye Fixed Dome Network Camera

Fisheye View

180° Fisheye View

Video Content Analysis

Line crossing detection, intrusion detection, unattended baggage

Object removal, face detection, scene change detection

Smart Features

120dB True WDR /3D DNR /BLC /Defog

Day & Night with ICR

Basic Event

Motion Detection, Video Tampering, Video Loss, Privacy Mask

IR Range

Upto 8m IR Range

Interfaces

Support upto 128GB SD Card

1 Audio I/O, 1 Alarm I/O

Smart Codec

Support H.265+ Smart Codec to Save Bandwidth and Storage

Camera

Image Sensor

1/2.5" Progressive Scan CMOS

Min. Illumination

Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on

Shutter Speed

1/3 s to 1/100,000 s

Lens

1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°

Lens Mount

M12

Day &Night

IR cult filter with auto switch

DNR

3D DNR

Wide Dynamic Range

120 dB

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265 /H.264 /MJPEG

H.264 Type

Main Profile /High Profile

H.264+

Support

H.265 Type

Main Profile

H.265+

Support

Video Bit Rate

32 Kbps to 16 Mbps

Audio Compression (-S)

G.711 /G.722.1 /G.726 /MP2L2 /PCM

Audio Bit Rate (-S)

64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-192Kbps (MP2L2)


Max. Resolution

2560 × 1920

Main Stream Max. Frame Rate

50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960)

60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960)

Sub-Stream Max. Frame Rate

50Hz: 25fps (352× 288, 704 × 576)

60Hz: 30fps (352 × 240, 704 × 576)

Image Settings

Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser

Image Enhancement

WDR /3D DNR /Backlight Compensation /Defog

Day/Night Switch

Auto /Schedule /Triggered by Alarm In (-S model supports)

Region of Interest

Support 1 fixed region for main stream and sub-stream

Lens Distortion Correction

Support

Live View Display

Mount Type

Support table, wall, and ceiling

Display Mode

Support 14 display modes in total (including display modes of different mount types):

Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama +  PTZ,

360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Audio (-S)

Environment Noise Filtering

Support

Audio I/O

Support

Sampling Rate

8kHz /16kHz /32kHz /44.1kHz /48kHz

Network

Network Storage

NAS (Support NFS,SMB/CIFS), built-in microSD /SDHC /SDXC card slot, up to 128 G, ANR

Alarm Trigger

Video tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login

Detection

Motion detection, dynamic analysis, intrusion detection, line crossing detection

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Standard

ONVIF (PROFILE S, PROFILE G), ISAPI

General Function

One-key reset, anti-flicker, password protection, privacy mask, IP Address filtering, heartbeat, watermark

Firmware Version

V5.5.52

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio (-S)

1 audio input (line in), 1 audio output interface

Alarm (-S)

1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.)

On-board Storage

Built-in microSD/ SDHC /SDXC slot, up to 128 G

General

Operating Conditions

-10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)

Power Supply

12 VDC, 0.5 A, max. 6 W

PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W

IR Range

Up to 8 m

Dimensions

Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
