DS-2CD2T43G0-I8 4mm
DS-2CD2T43G0-I8 4mm

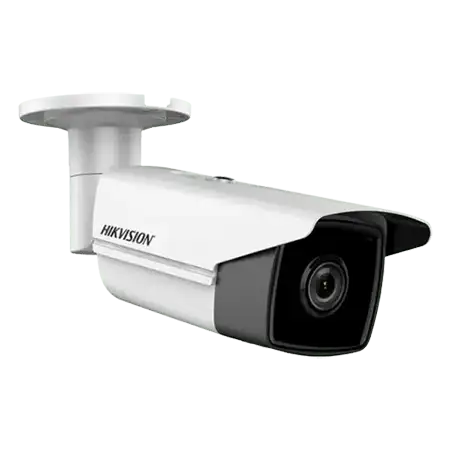

Hikvision 4MP IR Fixed Bullet Network Camera, 1/3" Progressive Scan CMOS; H.265+ / H.265 / H.264+ / H.264 / MJPEG, 25fps/30fps (2688×1520, 1920×1080), EXIR Up to 80m, 3D DNR, BLC/HLC, ICR, IP67, Built-in micro SD/SDHC/SDXC slot, DC12 VDC
Resolution
4MP (2688 × 1520)
Frame Rate
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
IR Range
Up to 80m IR Range
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Smart Features
120dB WDR, 3D DNR, BLC, ROI, Day & Night with ICR
Interface
Built-in SD Card Slot (Up to 128G)
Reset Button
Protection Level
IP67 Water and Dust Resistant
Smart Event
Motion detection, Intrusion Detection, Face detection. Exception
Line crossing detection, Video tampering alarm, Linkage Method
Camera |
|
Image Sensor |
1/3" Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
Day & Night |
IR Cut Filter |
Digital Noise Reduction |
3D DNR |
WDR |
120dB |
3-Axis Adjustment |
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
Lens |
|
Focal length |
4 mm |
Aperture |
F1.6 |
Focus |
Fixed |
FOV |
4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° |
Lens Mount |
M12 |
IR |
|
IR Range |
-I5: Up to 50 m -I8: Up to 80 m |
Wavelength |
850nm |
Compression Standard |
|
Video Compression |
Main stream: H.265 / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 |
H.264 Type |
Main Profile / High Profile |
H.264+ |
Main stream supports |
H.265 Type |
Main Profile |
H.265+ |
Main stream supports |
Video Bit Rate |
32 Kbps to 16 Mbps |
Smart Feature-set |
|
Smart Event |
Line crossing detection, intrusion detection, face detection |
Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
Linkage Method |
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP,NAS, Email Trigger notification: HTTP, ISAPI, Email |
Region of Interest |
1 fixed region for main stream and sub-stream |
Image |
|
Max. Resolution |
2688 × 1520 |
Main Stream |
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
Sub-Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Third Stream |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
Image Enhancement |
BLC / 3D DNR / HLC |
Image Setting |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
Target Cropping |
No |
Day / Night Switch |
Day / Night / Auto / Schedule |
Network |
|
Network Storage |
Support Micro SD / SDHC / SDXC card (128G), local storage and NAS (NFS, SMB / CIFS), ANR |
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
General Function |
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
API |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
Simultaneous Live View |
Up to 6 channels |
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
Client |
iVMS-4200, Hik-Connect, Hik-Central |
Interface |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
Video Output |
No |
On-board storage |
Built-in Micro SD / SDHC / SDXC slot, up to 128 GB |
SVC |
H.264 and H.265 encoding |
Reset Button |
Yes |
General |
|
Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Power Consumption and Current |
-I5: 12 VDC, 0.6 A, max. 7.5 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 9.5 W -I8: 12 VDC, 0.95 A, max. 11.5 W PoE (802.3af, 36 V to 57 V), 0.35 A to 0.1 A, max. 12.5 W |
Protection Level |
IP67 |
Material |
Metal |
Dimensions |
Camera: Φ 105 × 299.7 mm (Φ 4.1" × 11.8") Package: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1") |
Weight |
Camera: Approx. 1180 g (2.6 lb.) With Package: Approx. 1700 g (3.7 lb.) |
