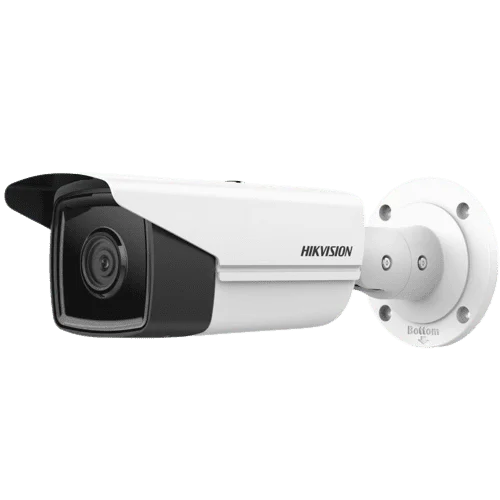

DS-2CD2T43G2-4I 4mm

Camera

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on

Shutter Time

1/3 s to 1/100, 000 s

Day ＆ Night

ICR Cut

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 4mm

Focal Length ＆ FOV

4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI

DORI

4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

Illuminator

Supplement Light Type

IR

Supplement Light Range

-4I: up to 80 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265 / H.264 / H.264+ / H.265+

Sub-stream: H.265 / H.264 / MJPEG

Third stream: H.265 / H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile / Main Profile / High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets

Security

Password protection, complicated password, HTTPS encryption, IP address filter,

Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)


Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Enhancement

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-Board Storage

Built-in microSD, up to 512 GB

Reset Key

Yes

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Line crossing detection, intrusion detection Supports human and vehicle targets classification

Face detection

Linkage

Upload to FTP / memory card / NAS, notify surveillance center, trigger recording, trigger capture, send email

General

Power

-4I:

12 VDC ± 25%, 1.0 A, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

Material

Aluminum alloy body

Sun shield, IR cover: plastic

Dimension

Ø105 × 299.7 mm (Ø4.1″ × 11.8″)

Package Dimension

386 × 156 × 155 mm (15.2" × 6.2" × 6.2")

Weight

Approx. 1070 g (2.4 lb.)

With Package Weight

Approx. 1589 g (3.5 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Approval

EMC

FCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 A1: 2014);

RCM (AS / NZS CISPR 32: 2015);

IC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);

CE-LVD (EN 60950-1:2005 + Am 1: 2009 + Am 2: 2013); BIS (IS 13252 (Part 1): 2010+A1: 2013+A2: 2015);

LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
