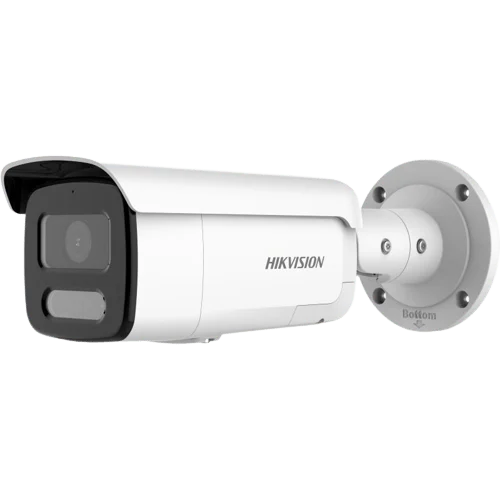

Camera
|
|
Sensor
|
1/1.8"
Progressive Scan CMOS
|
|
Min.
Illumination
|
Color:
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
|
|
Shutter
Speed
|
1/3
s to 1/100,000 s
|
|
Slow
Shutter
|
Yes
|
|
Wide
Dynamic Range
|
130
dB
|
|
Angle
Adjustment
|
Pan:
0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
|
|
Lens
|
|
Focal
Length & FOV
|
4 mm,
horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°
|
|
Lens
Mount
|
M16
|
|
Aperture
|
F1.0
|
|
Depth
of Field
|
4 mm:
5.4 m to ∞
|
|
DORI
|
|
DORI
|
4
mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
|
|
Illuminator
|
|
Smart
Supplement Light
|
Yes
|
|
White
Light Range
|
Up to
60 m
|
|
Visual
Alarm
|
Yes
|
|
Video
|
|
Max.
Resolution
|
2688
× 1520
|
|
Main
Stream
|
50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
|
|
Sub-Stream
|
50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
30 fps (1280 × 720, 640 × 480, 640 × 360)
|
|
Third
Stream
|
50 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third
stream is supported under certain settings.
|
|
Video
Compression
|
Main
stream: H.265 / H.264 / H.265+ / H.264+
Sub-stream:
H.265/H.264
Third
stream: H.265/H.264
*Third
stream is supported under certain settings.
|
|
Video
Bit Rate
|
32 Kbps
to 8 Mbps
|
|
H.264
Type
|
Baseline
Profile / Main Profile / High Profile
|
|
H.265
Type
|
Main
Profile
|
|
H.264+
|
Main
stream supports
|
|
H.265+
|
Main
stream supports
|
|
Bit
Rate Control
|
CBR/VBR
|
|
Scalable
Video Coding (SVC)
|
H.265
and H.264 encoding
|
|
Region
of Interest (ROI)
|
1 fixed
region for main stream and sub-stream
|
|
Audio
|
|
Audio
Compression
|
G.711ulaw
/ G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
|
|
Audio
Bit Rate
|
64 Kbps
(G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps
(MP2L2)
/ 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
|
|
Audio
Sampling Rate
|
8 kHz
/ 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
|
|
Environment
Noise Filtering
|
Yes
|
|
Network
|
|
Protocols
|
TCP/IP,
ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X,
QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
|
|
Simultaneous
Live View
|
Up to
6 channels
|
|
User/Host
|
Up to
32 users. 3 user levels: administrator, operator and user
|
|
Security
|
Password
protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2,
WSSE and digest authentication for Open Network Video Interface
|
|
Network
Storage
|
NAS
(NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD / SDHC / SDXC card
(512 GB) local storage Together with high-end Hikvision memory card, memory card
encryption and health detection are supported
|
|
|
|
Parameters Switch
|
Yes
|
|
Settings
|
Rotate
mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable
by client software or web browser
|
|
Day/Night
Switch
|
Auto,
Schedule
|
|
SNR
|
≥ 52 dB
|
|
Enhancement
|
BLC,
HLC, 3D DNR
|
|
Interface
|
|
Ethernet
Interface
|
1 RJ45
10 M/100 M self-adaptive Ethernet port
|
|
On-Board
Storage
|
Built-in
memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
|
|
Built-in
Microphone
|
Yes
|
|
Built-in
Speaker
|
2 W,
10 cm: 97 dB
|
|
Audio
|
1
input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium
1 output
(line out),two-core terminal block , max. output amplitude: 3.3 Vpp, output
impedance:
100 Ω, interface type: non-equilibrium
|
|
Alarm
|
1 input,
1 output (max. 24 VDC/24 VAC, 1 A)
|
|
Reset
Key
|
Yes
|
|
Event
|
Basic
Event
|
Motion
detection (human and vehicle targets classification), video tampering alarm,
exception
|
Smart
Event
|
Scene
change detection
|
Deep Learning Function
|
Face
Capture
|
Yes
|
Perimeter
Protection
|
Line
crossing detection, intrusion detection, region entrance detection, region exiting
detection
Supports
human and vehicle targets classification
|
General
|
Linkage
Method
|
Upload
to NAS / memory card / FTP, notify surveillance center, trigger recording, trigger
capture,
send email, strobe light, audible warning, trigger alarm output
|
Material
|
Aluminum
alloy body
|
Dimension
|
289.5
mm × Ø105 mm (11.4"× Ø4.1")
|
Package
Dimension
|
386
mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
|
Weight
|
Approx.
1165 g (2.6 lb.)
|
With
Package Weight
|
Approx.
1639 g (3.6 lb.)
|
Storage
Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
Startup
and Operating Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
Power
Consumption and Current
|
12 VDC,
0.67 A, max. 8 W
PoE
(802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W
|
Power
Supply
|
12 VDC
± 25%, reverse polarity protection
PoE:
802.3af, Class 3
|
Power
Interface
|
Ø5.5
mm coaxial power plug
|
Approval
|
EMC
|
FCC
SDoC: 47 CFR Part 15, Subpart B;
CE-EMC:
EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1:
2014;
RCM:
AS/NZS CISPR 32: 2015;
IC VoC:
ICES-003: Issue 6, 2016;
KC:
KN 32: 2015, KN 35: 2015
|
Safety
|
UL:
UL 60950-1;
CB:
IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
CE-LVD:
EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
LOA:
IEC/EN 60950-1
|
Environment
|
CE-RoHS:
2011/65/EU; WEEE: 2012/19/EU;
Reach:
Regulation (EC) No 1907/2006
|
|
Protection
|
IP67:
IEC 60529-2013
|
|
