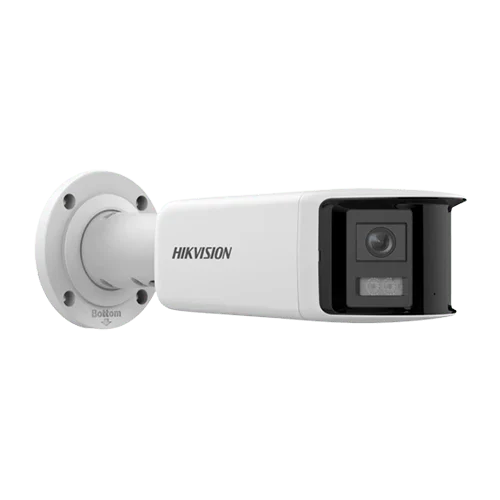

Camera
|
|
Sensor
|
2 ×
1/1.8" Progressive Scan CMOS
|
|
Max.
Resolution
|
5120
× 1440
|
|
Min.
Illumination
|
Color:
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
|
|
Shutter
Time
|
1/3
s to 1/100,000 s
|
|
Angle
Adjustment
|
Pan:
0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
|
|
Lens
|
|
Lens
Type
|
Fixed
focal lens, dual lens: 4 mm
|
|
Focal
Length & FOV
|
4 mm,
horizontal FOV: 180°, vertical FOV: 44°
|
|
Lens
Mount
|
M16
|
|
Iris
Type
|
Fixed
|
|
Aperture
|
F1.0
|
|
Depth
of Field
|
3.6
m to ∞
|
|
DORI
|
|
DORI
|
4 mm,
D: 77 m, O: 30 m, R: 15 m, I: 7 m
|
|
Illuminator
|
|
Supplement
Light Type
|
White
Light
|
|
Supplement
Light Range
|
Up to
40 m
|
|
Smart
Supplement Light
|
Yes
|
|
Video
|
|
Main
Stream
|
When
WDR is On:
50 Hz:
12.5 fps (5120 × 1440)
60 Hz:
15 fps (5120 × 1440)
When
WDR is Off:
50 Hz:
20 fps (5120 × 1440)
60 Hz:
20 fps (5120 × 1440)
|
|
Sub-Stream
|
When
WDR is On:
50 Hz:
12.5 fps (1920 × 536, 960 × 272)
60 Hz:
15 fps (1920 × 536, 960 × 272)
When
WDR is Off:
50 Hz:
20 fps (1920 × 536, 960 × 272)
60 Hz:
20 fps (1920 × 536, 960 × 272)
|
|
Video
Compression
|
Main
stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream:
H.265 / H.264
|
|
Video
Bit Rate
|
32 Kbps
to 16 Mbps
|
|
H.264
Type
|
Baseline
Profile, Main Profile, High Profile
|
|
H.265
Type
|
Main
Profile
|
|
Bit
Rate Control
|
CBR,
VBR
|
|
Scalable
Video Coding (SVC)
|
H.264
and H.265 encoding
|
|
Region
of Interest (ROI)
|
1 fixed
region(s) for main stream
|
|
Audio
|
|
Audio
Type
|
Mono
sound
|
|
Audio
Compression
|
G.711
/ G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
|
|
Audio
Bit Rate
|
64 Kbps
(G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps
(MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
|
|
Audio
Sampling Rate
|
8 kHz
/ 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
|
|
Environment
Noise Filtering
|
Yes
|
|
Network
|
|
Protocols
|
TCP/IP,
ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket,
WebSockets
|
|
User/Host
|
Up to
32 users
3 user levels: administrator, operator, and user
|
|
Security
|
Password
protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface,
RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2,
host authentication (MAC address)
|
|
Network
Storage
|
NAS
(NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR,
Together
with high-end Hikvision memory card, memory card encryption and health
detection are supported.
|
|
|
|
Parameters Switch
|
Yes
|
|
Settings
|
saturation,
brightness, contrast, sharpness, gain, white balance, adjustable by client software
or web browser
|
|
Day/Night
Switch
|
Day,
Night, Auto, Schedule
|
|
Wide
Dynamic Range (WDR)
|
130
dB
|
|
SNR
|
≥ 52 dB
|
|
Enhancement
|
BLC,
HLC, 3D DNR
|
|
Interface
|
|
Ethernet
Interface
|
1 RJ45
10 M/100 M self-adaptive Ethernet port
|
|
On-Board
Storage
|
Built-in
memory card slot, support microSD / microSDHC / microSDXC / TF card, up to 512GB
|
|
Built-in
Microphone
|
Yes
|
|
Built-in
Speaker
|
Max.
power consumption: 1 W, max. sound pressure: 10 cm: 97 dB
|
|
Audio
|
1
input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance:
4.7 KΩ, interface type: non-equilibrium,
1 output
(line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance:
100 Ω, interface type: non-equilibrium
|
|
Alarm
|
1 input,
1 output (max. 24 VDC, 1 A)
|
|
Reset
Key
|
Yes
|
|
Event
|
|
Basic
Event
|
Motion
detection (support alarm triggering by specified target types (human and vehicle)),
alarm input and output, flashing alarm light output, audible alarm output, exception
|
|
Smart
Event
|
Line
crossing detection, intrusion detection, region entrance detection, region exiting
detection (support alarm triggered by specified target types (human and vehicle)),
scene change detection
|
|
Linkage
|
Upload
to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture, audible warning, white light flashing
|
|
Deep Learning Function
|
|
Perimeter
Protection
|
Line
crossing, intrusion, region entrance, region exiting (support alarm triggering
by specified target types (human and vehicle))
|
|
General
|
|
Power
|
12 VDC
± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug,
PoE:
IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
|
|
Material
|
Front
cover: metal, body: metal, bracket: metal
|
|
Dimension
|
118.6
mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")
|
|
Package
Dimension
|
405
mm × 190 mm × 180 mm (16" × 7.5" × 7.1")
|
|
Weight
|
Approx.
1420 g (3.1 lb.)
|
|
With
Package Weight
|
Approx.
2228 g (4.9 lb.)
|
|
Storage
Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
Startup
and Operating Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
General
Function
|
Anti-flicker,
heartbeat, password reset via email, password protection, one-key reset
|
|
Flashing
Light
|
Yes
|
|
Approval
|
|
EMC
|
FCC:
47 CFR Part 15, Subpart B,
CE-EMC:
EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011
+A1: 2014,
RCM:
AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
|
|
Safety
|
UL:
UL 62368-1,
CB:
IEC 62368-1: 2014+A11,
CE-LVD:
EN 62368-1: 2014/A11: 2017
|
|
Environment
|
CE-RoHS:
2011/65/EU, WEEE: 2012/19/EU,
Reach:
Regulation (EC) No 1907/2006
|
|
Protection
|
IP67:
IEC 60529-2013
|
