DS-2CD7A26G0/P-LZS 2.8mm-12mm

DS-2CD7A26G0/P-LZS 2.8mm-12mm

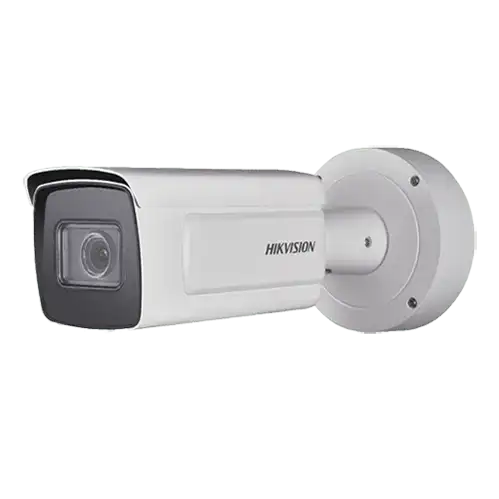

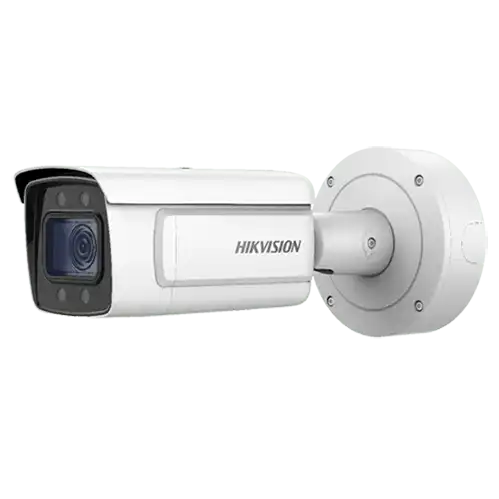

Hikvision 2 MP DeepinView ANPR Moto Varifocal Bullet Camera, 1/1 8” Progressive Scan CMOS, White light range up to 50 m , 1920 x 1080 up to 50fps/60fps, H.265, H.265+, H.264, H.264+, 140dB WDR, 3D DNR, License Plate Recognition, Supports alarms for listed license plate in the blacklist and whitelist, Built-in SD card slot, up to 256 GB, IP67, IK10

Resolution

2MP (1920 × 1080) Varifocal Lens 2.8mm-12mm

White Light Range

White light range up to 50 m

License Plate Recognition

ANPR camera, engineered with deep learning algorithms  are extremely accurate

Frame Rate

50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Material

Metal

Video Compression

5 streams and up to 5 custom streams

Mainstream: H.265/H.264/H.265+/H.264+

Sub stream - fifth stream/custom stream: H.265/H.264/MJPEG

DarkFighter

Excellent low-light performance via DarkFighter technology

LightFighter

Clear imaging against strong back light due to LightFighter technology

Smart Features

140dB WDR, 3D DNR, BLC, HLC, ROI, Day & Night with ICR

Interface

Audio I/O : 2/2

Built-in SD Card Slot (Up to 128G), Reset Button

Protection Level

IP67 Water and Dust Resistant, IK10 Vandal Proof

Smart Event

Perimeter Protection, Face Detection

6 behavior analyses, 2 Exception Detection

Supports alarms for listed license plate in the blacklist and whitelist

Camera

Image Sensor

1/1.8″ Progressive Scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with Light

Shutter Speed

1 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

140 dB

Angle Adjustment

Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal length

2.8 to 12 mm

Aperture

2.8 to 12 mm: F1.2

Focus

Auto, semi-auto, manual

FOV

2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3°

Lens Mount

Integrated

White Light

White Light Range

2.8 to 12 mm: up to 50 m

Compression Standard

Video Compression

Main stream: H.265 / H.264 / H.265+ / H.264+

Sub stream / third stream / fourth stream / fifth stream: / custom stream: H.265 / H.264 / MJPEG

H.264 Type

Baseline Profile / Main Profile / High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Audio Compression

No

Audio Bit Rate

No

Smart Feature-set

Perimeter Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Exception Detection

Scene change detection, defocus detection

Statistics

No

Face Detection

Yes

Recognition

License Plate Recognition

Region of Interest

4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking

Road Traffic and Vehicle Detection

Accuracy

(Under recommended installation and lighting conditions)

Capture rate > 98%

Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance / exit), < 5% (checkpoint)

Blacklist and whitelist

Max. 10,000 records

No License Plate Detection

Yes

Motorcycle LPR

Yes (only applicable to checkpoint)


Max. Resolution

1920 × 1080

Main Stream

50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (704 × 576, 640 × 480)

60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480)

60Hz: 30fps (704 × 480, 640 × 480)

Custom Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS, lens distortion correction

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping

Yes

SVC

H.264 and H.265 encoding

Day / Night Switch

Day / Night / Auto / Schedule / Triggered by Alarm In /  Triggered by video

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network

Network Storage

microSD / SDHC / SDXC card (256 GB), local storage and NAS (NFS, SMB / CIFS), ANR

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error, alarm for listed license plate in the blacklist and whitelist

Protocols

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Security Measures

Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP / HTTPS, WSSE and digest authentication for ONVIF

General Function

One-key reset, anti-flicker, five streams and custom stream, heartbeat, mirror. password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Simultaneous Live View

Up to 20 channels

User / Host

Up to 32 users. 3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central, iVMS-4500

Interface

Communication Interface

1 RJ45 10M / 100M / 1000M Ethernet port,

1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Alarm

2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)

Video Output

1Vp-p composite output (75 Ω / CVBS)

On-board storage

Built-in micro SD / SDHC / SDXC slot, up to 256 GB

BNC

CVBS analog output (4CIF resolution), internal

Reset Button

Yes

General

Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F)

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 20%, three-core terminal block PoE (802.3at, class 4)

Power Consumption and Current

12 VDC, 1.8 A, max. 22 W; PoE (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, max. 22 W

Protection Level

IP67, IK10

Material

Metal

Dimensions

Camera: Φ140 × 351 mm (Φ5.5″ × 13.8″)

Weight

Camera: approx. 2.5 kg (5.5 lb.)
