DS-2CE10DFT-PF 3.6mm
DS-2CE10DFT-PF 3.6mm

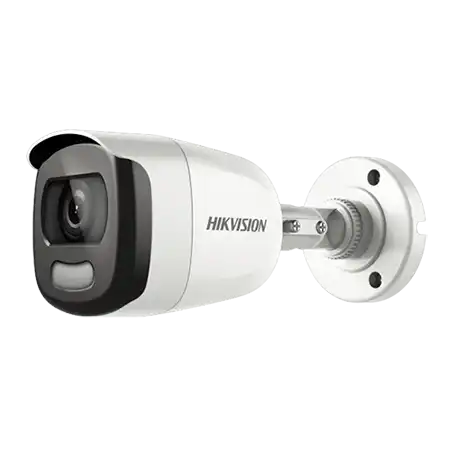

Hikvision 2MP ColorVu Fixed Mini Bullet Camera, ColorVu Camera, 24/7 full color imaging, 130 dB true WDR technology, Warm supplemental light with 20m range, 3D DNR, Water and dust resistant (IP67), 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS), Day/Night Mode, White Balance, BLC (Backlight Compensation), 12 VDC.
Resolution
2MP (1920x1080p) Full HD
ColorVu Camera
24/7 Colored Live View
Warm Supplemental Light
Up to 20m White Light Distance
Video Content Analysis
Motion Detection, Privacy Mask
Frame Rate
Smart Features
OSD Menu, 130dB WDR, 3D DNR, BLC, HLC
Video Output Mode
Support TVI/AHD/CVI/CVBS
Protection Level
IP67 Weatherproof
Camera |
|
Image Sensor |
2 MP CMOS image sensor |
Resolution |
1920 (H) × 1080 (V) |
Frame Rate |
TVI: [email protected], [email protected] AHD: [email protected], [email protected] CVI: [email protected], [email protected] CVBS: PAL/NTSC |
Min. illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
Shutter Time |
PAL: 1/25 s to 1/50,
000 s |
Slow Shutter |
Max. 16x |
Lens |
3.6 mm |
Field of View |
Horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0° |
Lens Mount |
M16 |
Day & Night |
Color |
Angle Adjustment |
Pan: 0° to 360° |
WDR (Wide Dynamic Range) | ≥130 dB |
Menu |
|
Image Mode |
STD/HIGH SAT |
AGC |
Yes |
White Balance |
Auto / Manual |
HLC |
Yes |
BLC (Backlight Compensation) |
Yes |
Privacy Mask |
4 programmable privacy masks |
Motion Detection |
4 programmable areas |
WDR |
Yes |
Functions |
Brightness, Sharpness, Mirror, Smart Light, Defective Pixel Correction |
Interface |
|
Video Output |
1 HD analog output |
Switch Button |
TVI /AHD /CVI /CVBS |
General |
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
Power Supply |
12 VDC ±25% |
Power Consumption |
Max. 3 W |
Protection Level |
IP67 |
Material |
Plastic |
White Light |
Up to 20 m |
Communication |
HIKVISION-C (TVI output) |
Dimensions |
181.4 mm × 70 mm × 68 mm (7.14" × 2.75" × 2.68") |
Weight |
Approx. 203 g (0.45 lb.) |
