DS-2CE16D0T-EXIPF 3.6mm
DS-2CE16D0T-EXIPF 3.6mm

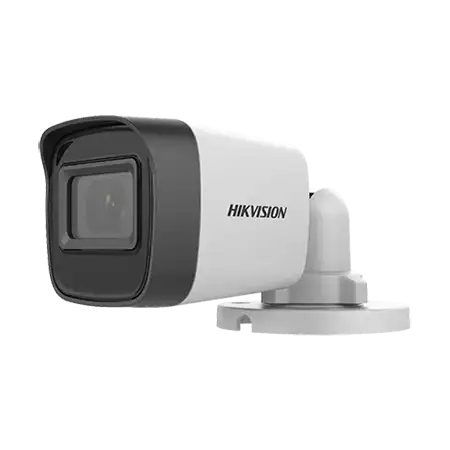

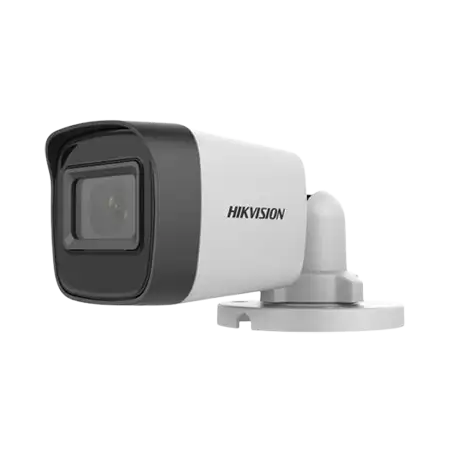

Hikvision 2MP Outdoor EXIR Fixed Mini Bullet Camera, 1920 × 1080 resolution, 2MP CMOS Sensor, 3.6 mm fixed lens, [email protected], Up to 20m IR distance for bright night imaging, 1 pcs EXIR LEDs, Digital WDR, One port for four switchable signals (TVI/AHD/CVI/CVBS), Water and dust resistant (IP66).
Resolution
2MP Turbo Camera (1920 × 1080)
IR Range
Up to 20m IR distance for Bright Night Imaging
Frame Rate
TVI: [email protected]/30fps, AHD: [email protected]/30fps
Smart Features
DWDR, BLC, 2D-DNR, Day & Night with ICR
Video Output Mode
Switchable TVI/AHD/CVI/CVBS
Protection Level
Water and dust resistant (IP66)
Camera |
|
Image Sensor |
2MP CMOS |
Signal System |
PAL/NTSC |
Resolution |
1920 (H) × 1080 (V) |
Frame Rate |
TVI: 1080p @25fps/30fps |
Min. Illumination |
0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Lens |
3.6 mm Fixed Lens |
Field of View |
Horizontal FOV: 81°, Vertical FOV: 42°, Diagonal FOV: 100° |
Lens Mount |
M12 |
Day & Night |
ICR |
WDR (Wide Dynamic Range) |
Digital WDR |
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
Menu |
|
Image Mode |
STD/HIGH-SAT |
AGC |
Yes |
Day/Night Mode |
Auto / Color / BW (Black and White) |
White Balance |
Auto |
AE (Auto Exposure) Mode |
DWDR, BLC, Global |
Noise Reduction |
2D DNR |
Language |
English |
Function |
Brightness, Mirror, Smart IR, Sharpness |
Interface |
|
Video Output |
Switchable TVI / AHD / CVI / CVBS |
General |
|
Operating Conditions |
-40°C to 60°C (-40°F to 140°F), |
Power Supply |
12 VDC ± 25% |
Consumption |
Max. 3.3 W |
Protection Level |
IP66 |
Material |
Plastic |
IR Range |
Up to 20 m |
Communication |
HIKVISION-C |
Dimension |
138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" 2.278") |
Weight |
Approx. 145 g (0.32 lb.) |
