DS-2CE16D0T-EXLPF 3.6mm

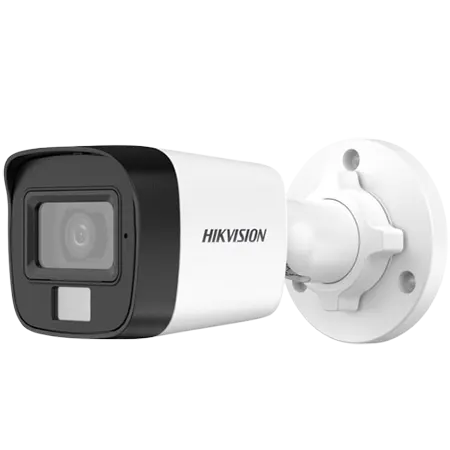

Hikvision DS-2CE16D0T-EXLPF 2MP Smart Hybrid Light Fixed Mini Bullet Camera, 1920 × 1080 resolution, 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR, Smart-Hybrid light, Up to 20 m IR distance for bright night imaging, Up to 20 m white light distance for bright night imaging, One port for 4 switchable signals (TVI/AHD/CVI/CVBS), horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°, DWDR/BLC/HLC/Global, Water and dust resistant (IP67).
Type: Turbo HD |
Shape: Bullet |
Resolution: 2MP |
Technology: Dual Light |
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Smart Hybrid Light Fixed Mini Bullet Camera
Hikvision DS-2CE16D0T-EXLPF 2MP Smart Hybrid Light Bullet Camera
Smart Hybrid Light
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
Video Output Mode
Switchable TVI/AHD/CVI/CVBS
Smart Features
DWDR/BLC/HLC/Global
Frame Rate
TVI: 1080p @ 30 fps, 1080p @ 25 fps,
AHD: 1080p @ 30 fps, 1080p @ 25 fps
Protection Level
Water and dust resistant (IP67)
Camera |
|
Image Sensor |
2 MP CMOS |
Max. Resolution |
1920 (H) × 1080 (V) |
Min. Illumination |
0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Day & Night |
ICR |
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360° |
Signal System |
PAL/NTSC |
Lens |
|
Lens Type |
3.6 mm fixed focal lens |
Focal Length & FOV |
3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90° |
Lens Mount |
M12 |
Illuminator |
|
Supplement Light Type |
Smart IR, White Light |
Supplement Light Range |
IR : Up to 20 m White Light : Up to 20 m |
Image |
|
Image Parameters Switch |
STD / HIGH-SAT / HIGHLIGHT |
Image Settings |
Brightness, Sharpness, Smart IR |
Frame Rate |
TVI: 1080p @ 30 fps, 1080p @ 25 fps AHD: 1080p @ 30 fps, 1080p @ 25 fps CVI: 1080p @ 30 fps, 1080p @ 25 fps CVBS: PAL/NTSC |
Day/Night Mode |
Auto/Color |
Wide Dynamic Range (WDR) |
Digital WDR |
Image Enhancement |
DWDR / BLC / HLC / Global |
White Balance |
Auto/Manual |
AGC |
Yes |
Interface |
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
General |
|
Material |
Plastic |
Dimension |
Ø70 mm × 138.8 mm (Ø2.76" x 5.46") |
Weight |
Max. 150 g (0.33 lb.) |
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation) |
Communication |
HIKVISION-C |
Language |
English |
Power Supply |
12 VDC ± 25%, Max. 3.2 W *You are recommended to use one power adapter to supply the power for one camera. |
Approval |
|
Protection |
IP67 |
Camera |
|
Image Sensor |
2 MP CMOS |
Max. Resolution |
1920 (H) × 1080 (V) |
Min. Illumination |
0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Day & Night |
ICR |
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360° |
Signal System |
PAL/NTSC |
Lens |
|
Lens Type |
3.6 mm fixed focal lens |
Focal Length & FOV |
3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90° |
Lens Mount |
M12 |
Illuminator |
|
Supplement Light Type |
Smart IR, White Light |
Supplement Light Range |
IR : Up to 20 m White Light : Up to 20 m |
Image |
|
Image Parameters Switch |
STD / HIGH-SAT / HIGHLIGHT |
Image Settings |
Brightness, Sharpness, Smart IR |
Frame Rate |
TVI: 1080p @ 30 fps, 1080p @ 25 fps AHD: 1080p @ 30 fps, 1080p @ 25 fps CVI: 1080p @ 30 fps, 1080p @ 25 fps CVBS: PAL/NTSC |
Day/Night Mode |
Auto/Color |
Wide Dynamic Range (WDR) |
Digital WDR |
Image Enhancement |
DWDR / BLC / HLC / Global |
White Balance |
Auto/Manual |
AGC |
Yes |
Interface |
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
General |
|
Material |
Plastic |
Dimension |
Ø70 mm × 138.8 mm (Ø2.76" x 5.46") |
Weight |
Max. 150 g (0.33 lb.) |
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation) |
Communication |
HIKVISION-C |
Language |
English |
Power Supply |
12 VDC ± 25%, Max. 3.2 W *You are recommended to use one power adapter to supply the power for one camera. |
Approval |
|
Protection |
IP67 |
