DS-2CE16D0T-LFS 2.8mm

DS-2CE16D0T-LFS 2.8mm

Hikvision DS-2CE16D0T-LFS 2MP Dual Light Audio Fixed Mini Bullet Camera, 1920×1080 resolution, 2.8 mm fixed focal lens, 30m IR, Up to 20m white light distance, TVI/AHD/CVI/CVBS switchable, Audio over Coaxial Cable, Built-in mic, 12V power supply, IP67 protection.

Dual Light Audio Camera

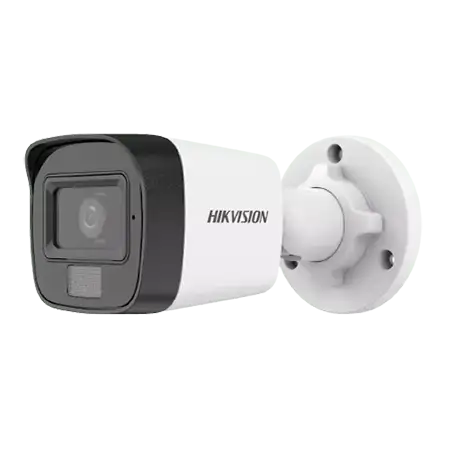

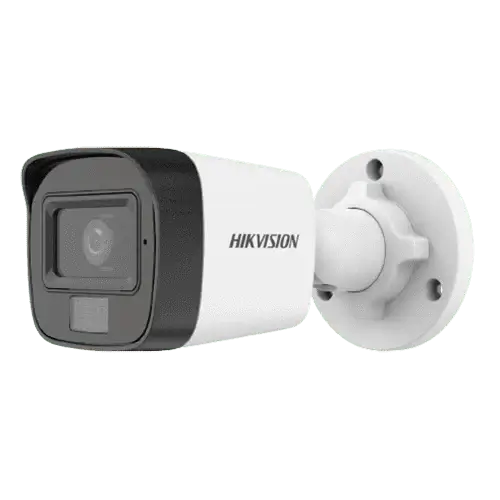

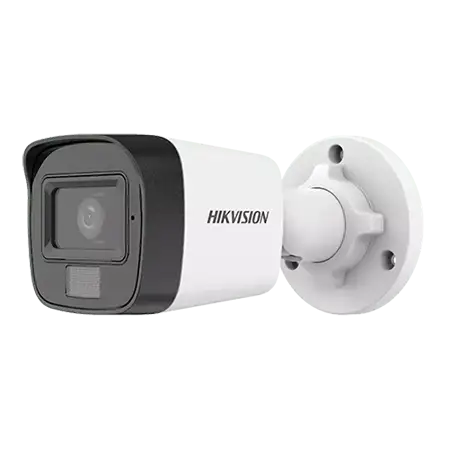

Hikvision DS-2CE16D0T-LFS 2MP Dual Light Audio Fixed Mini Bullet Camera

IR Range

Up to 30m IR distance for bright night imaging

Frame Rate

TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps

White Light

Up to 20m white light distance for bright night imaging

Audio

Built-in Microphone, Transmits audio over the coaxial cable

Protection Level

Water and dust resistant (IP67)

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm fixed focal lens

Focal Length & FOV

Horizontal FOV: 101°, Vertical FOV: 56, Diagonal FOV: 118°

Lens Mount

M12

Illuminator

Supplement Light Type

White Light, IR

Supplement Light Range

IR: Up to 30 m

White Light: Up to 20 m


Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080P @ 30 fps, 1080P @ 25 fps

AHD: 1080P @ 30 fps, 1080P @ 25 fps

CVI: 1080P @ 30 fps, 1080P @ 25 fps

CVBS: PAL/NTSC

Day/Night Mode

IR/White Light

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

Yes

White Balance

Auto/Manual

AGC

Yes

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Material

Metal

Dimension

138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")

Weight

Approx. 266 g (0.59 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 3.3 W

Approval

Protection

IP67
