DS-2CE16K0T-LPFS 3.6mm
DS-2CE16K0T-LPFS 3.6mm

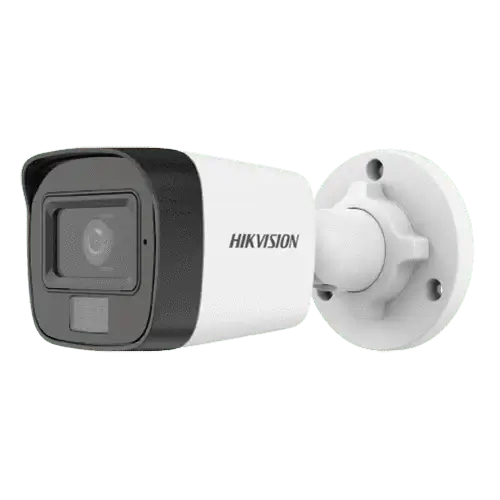

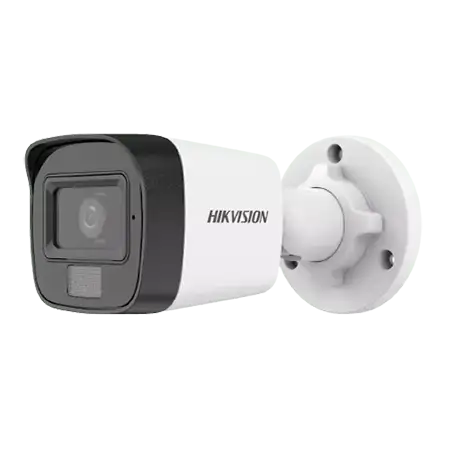

Hikvision DS-2CE16K0T-LPFS 3K Dual Light Audio Fixed Mini Bullet Camera, 2960 × 1665 resolution, 3.6 mm fixed focal lens, IR : Up to 25m, White Light : Up to 20m, TVI/AHD/CVI/CVBS switchable, Audio over Coaxial Cable, Digital WDR, Built-in Mic, IP67 Protection.
Dual Light Audio Camera
Hikvision DS-2CE16K0T-LPFS 3K Dual Light Audio Fixed Mini Bullet Camera
IR Range
Up to 25m IR distance for bright night imaging
Frame Rate
[email protected] fps, 4 [email protected] fps/30 fps, [email protected] fps/30 fps
White Light
Up to 20m white light distance for bright night imaging
Audio
Built-in Microphone, Transmits audio over the coaxial cable
Protection Level
Water and dust resistant (IP67)
Camera |
|
Image Sensor |
3K CMOS |
Max. Resolution |
2960 (H) × 1665 (V) |
Min. Illumination |
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
Day & Night |
ICR |
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
Signal System |
PAL/NTSC |
Lens |
|
Lens Type |
3.6 mm fixed focal lens |
Focal Length & FOV |
3.6 mm, horizontal FOV: 83°, vertical FOV: 48°, diagonal FOV: 102° |
Lens Mount |
M12 |
Illuminator |
|
Supplement Light Type |
White Light, IR |
Supplement Light Range |
IR: Up to 25 m White Light: Up to 20 m |
Image |
|
Image Settings |
Brightness, Sharpness, Smart IR |
Frame Rate |
TVI:
[email protected] fps, 4 [email protected] fps/30 fps, [email protected] fps/30 fps |
Day/Night Mode |
IR/White Light |
Wide Dynamic Range (WDR) |
Digital WDR |
Image Enhancement |
Yes |
White Balance |
Auto/Manual |
AGC |
Yes |
Interface |
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
General |
|
Material |
Plastic |
Dimension |
138.8 mm × Ø70 mm (5.47" × Ø2.76") |
Weight |
Approx. 160 g (0.35 lb.) |
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
Communication |
HIKVISION-C |
Language |
English |
Power Supply |
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
Consumption |
Max. 2.9 W |
Approval |
|
Protection |
IP67 |
