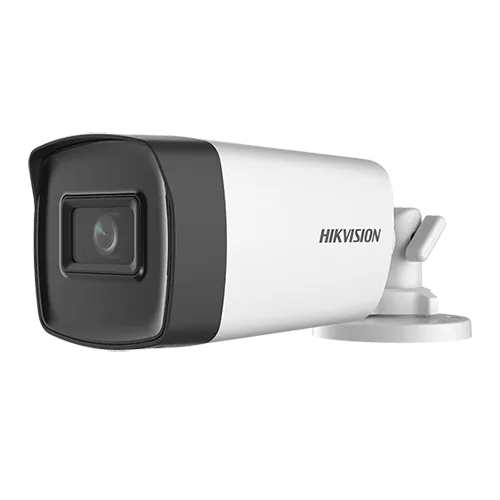

Hikvision 5MP Fixed Bullet Turbo Camera, TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps, Up to 40m IR Range, Day & Night with ICR, Digital WDR, Switchable TVI/AHD/CVI/CVBS, Front Cover: Metal, Main Body: Plastic, Water and dust resistant (IP67).
| Type: Turbo HD |
| Shape: Bullet |
| Resolution: 5MP |
| Technology: Infrared |
Resolution
Hikvision Turbo 5MP Fixed Bullet Camera
IR Range
Up to 40m IR distance for bright night imaging
Frame Rate
5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
Smart Features
DWDR, BLC, Day & Night Mode, Noise Reduction and AGC
Video Output Mode
Four switchable signals (TVI/AHD/CVI/CVBS)
Protection Level
Water and Dust resistant (IP67)
|
Camera |
|
|
Image Sensor |
5 MP CMOS |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 5M@20fps, 4M@30fps, 4M@25fps,
1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps |
|
Resolution |
2560 (H) × 1944 (V) |
|
Min. illumination |
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
Lens |
3.6 mm fixed lens |
|
Field of View |
Horizontal FOV: 80°, Vertical FOV: 63°, Diagonal FOV:105° |
|
Lens Mount |
M12 |
|
Day & Night |
ICR |
|
WDR (Wide Dynamic Range) |
Digital WDR |
|
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360° |
|
Menu |
|
|
Image Mode |
STD/HIGH-SAT |
|
AGC |
Support |
|
Day/Night Mode |
Auto/Color/BW (Black and White) |
|
White Balance |
Auto/Manual |
|
AE (Auto Exposure) Mode |
DWDR / BLC / HLC / Global |
|
Language |
English |
|
Functions |
Brightness, Sharpness, Mirror, Smart IR |
|
2D DNR |
Yes |
|
Interface |
|
|
Video Output |
TVI / AHD / CVI / CVBS |
|
General |
|
|
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
|
Power Supply |
12 VDC ± 25% |
|
Power Consumption |
Max. 4.3 W |
|
Protection Level |
IP67 |
|
Material |
Front Cover: Metal Main Body: Plastic |
|
IR Range |
Up to 40 m |
|
Communication |
HIKVISION-C |
|
Dimensions |
78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53") |
|
Weight |
Approx. 330 g (0.73 lb.) |
