DS-2CE17H0T-IT5F 3.6mm

DS-2CE17H0T-IT5F 3.6mm

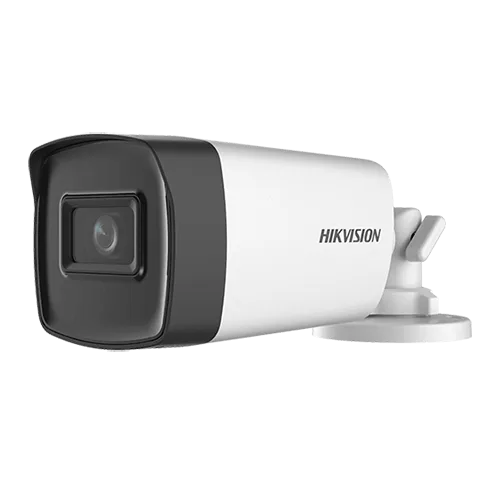

Hikvision DS-2CE17H0T-IT5F 5MP Fixed Bullet Turbo HD Camera, TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps, Up to 80m IR Range, Day & Night with ICR, Digital WDR, Switchable TVI/AHD/CVI/CVBS, Front Cover: Metal, Main Body: Plastic, Water and dust resistant (IP67).

Resolution

High quality imaging with 5MP, 2560 × 1944 resolution

IR Range

Up to 80m IR distance for bright night imaging

Frame Rate

5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

Smart Features

DWDR, BLC, Day & Night Mode, Noise Reduction and AGC

Video Output Mode

Support TVI/AHD/CVI/CVBS

Protection Level

Water and dust resistant (IP67)

Camera

Image Sensor

5MP CMOS

Signal System

PAL/NTSC

Frame Rate

TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC

Resolution

2560 (H) × 1944 (V)

Min. illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Lens

3.6 mm

Field of View

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR / BLC / HLC / Global

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR

2D DNR

Yes

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 5 W

Protection Level

IP67

Material

Front Cover: Metal Main Body: Plastic

IR Range

Up to 80 m

Communication

HIKVISION-C

Dimensions

78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")

Weight

Approx. 330 g (0.73 lb.)
