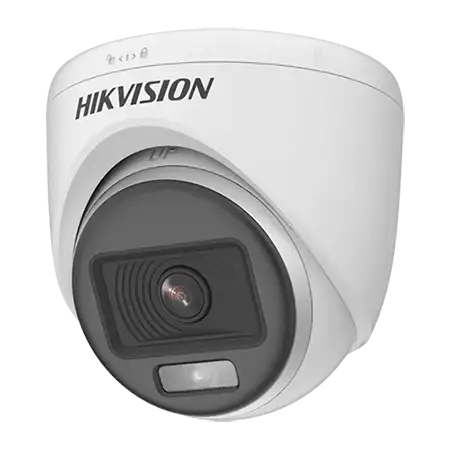

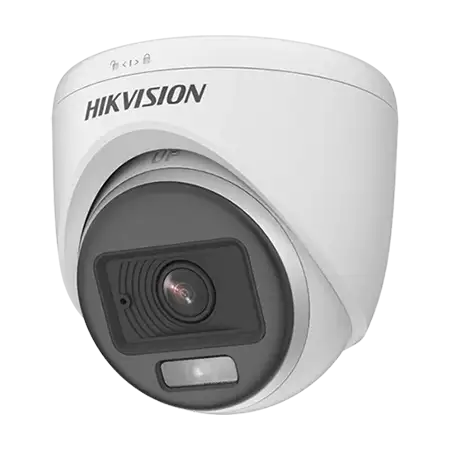

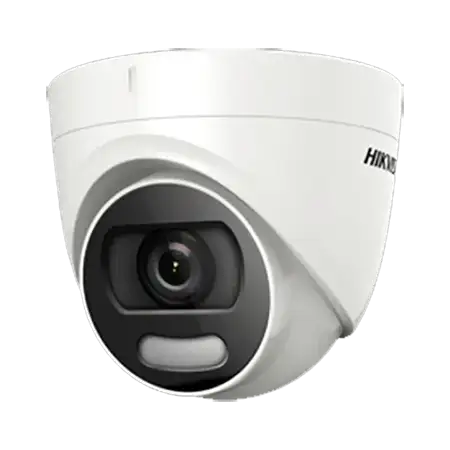

Hikvision 2MP ColorVu Indoor Turret Camera, 2.8mm Fixed Lens, 1920 × 1080 resolution, 24/7 color imaging with F1.0 aperture, Up to 20m white light distance, four switchable signals (TVI/AHD/CVI/CVBS), Digital WDR, Plastic, 12 VDC
| Type: Turbo HD |
| Shape: Turret |
| Resolution: 2MP |
| Technology: ColorVu |
Resolution
2MP (1920x1080p) ColorVu Indoor Fixed Turret Camera
ColorVu Camera
24/7 color imaging with F1.0 aperture
Supplemental Light
Up to 20 m white light distance for bright night imaging
Frame Rate
1080p@25fps/30fps
Smart Features
DWDR, 3D DNR, BLC, HLC
Video Output Mode
One port for four switchable signals (TVI/AHD/CVI/CVBS)
|
Camera |
|
|
Image Sensor |
2 MP CMOS |
|
Signal System |
PAL/NTSC |
|
Resolution |
1920 (H) × 1080 (V) |
|
Frame Rate |
TVI: 1080p
@25fps/30fps |
|
Min. Illumination |
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
|
Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
|
Field of View |
2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115° 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90° |
|
Lens Mount |
M12 |
|
Light Alarm |
Solid Light Alarm (White Light) |
|
WDR (Wide Dynamic Range) |
Digital WDR |
|
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
|
Menu |
|
|
White Light |
Auto/Off |
|
Image Mode |
STD / HIGH-SAT / HIGHLIGHT |
|
AGC |
Yes |
|
Day/Night Mode |
Color |
|
White Balance |
Auto/Manual |
|
AE (Auto Exposure) Mode |
DWDR, BLC, HLC, Global |
|
Noise Reduction |
3D DNR/2D DNR |
|
Language |
English |
|
Function |
Brightness, Mirror, Sharpness, Anti-Banding, Smart Light |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
|
General |
|
|
Operating Conditions |
-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
|
Consumption |
Max. 2.4 W |
|
Material |
Plastic |
|
White Light Range |
Up to 20 m |
|
Communication |
HIKVISION-C |
|
Dimension |
Φ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2") |
