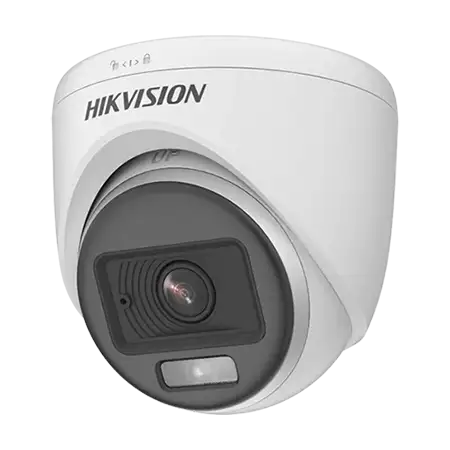

Hikvision 3K ColorVu Indoor Audio Fixed Turret Camera, 2960 × 1665 resolution, 24/7 color imaging with F1.0 aperture, Up to 20m white light distance for bright night imaging, Switchable signals (TVI/AHD/CVI/CVBS), High quality audio with audio over coaxial cable, Built-in Mic, 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps, BLC, HLC, Global, HLS, DWDR, 2D DNR, 12 VDC ± 25%.
| Type: Turbo HD |
| Shape: Turret |
| Resolution: 5MP |
| Audio Input / Output: Built-in Microphone |
| Technology: ColorVu |
Resolution
High quality imaging with 3K, 2960 × 1665 resolution
ColorVu Camera
24/7 color imaging with F1.0 aperture
Microphone
High quality audio with audio over coaxial cable, Built-in microphone
Frame Rate
3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps
White Light Distance
Up to 20m white light distance for bright night imaging
Smart Features
Digital WDR, 3D DNR, BLC, HLC
|
Camera |
|
|
Image Sensor |
3K CMOS |
|
Signal System |
PAL/NTSC |
|
Resolution |
2960 (H) × 1665 (V) |
|
Frame Rate |
TVI: 3K@20fps, 4MP @25fps/30fps,
1080p @25fps/30fps |
|
Min. Illumination |
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
|
Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
|
Field of View |
2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° |
|
Lens Mount |
M12 |
|
Light Alarm |
Solid Light Alarm (White Light) |
|
Day & Night |
24/7 Color Imaging |
|
WDR (Wide Dynamic Range) |
Digital WDR |
|
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
|
Image |
|
|
White Light |
Auto/Off |
|
Image Mode |
STD / HIGH-SAT / HIGHLIGHT |
|
AGC |
Yes |
|
Day/Night Mode |
Color |
|
White Balance |
Auto / Outdoor / Global/Manual |
|
AE (Auto Exposure) Mode |
DWDR, BLC, HLC, Global, HLS |
|
Noise Reduction |
2D DNR |
|
Language |
English |
|
Function |
Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
|
Audio In |
Built-in mic |
|
General |
|
|
Operating Conditions |
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera. |
|
Consumption |
Max. 2.5 W |
|
Material |
Plastic |
|
White Light Range |
Up to 20 m |
|
Communication |
HIKVISION-C |
|
Dimension |
Φ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2") |
|
Weight |
Approx. 165.5 g (0.36 lb.) |
