DS-2CE72DFT-F28 2.8mm

DS-2CE72DFT-F28 2.8mm

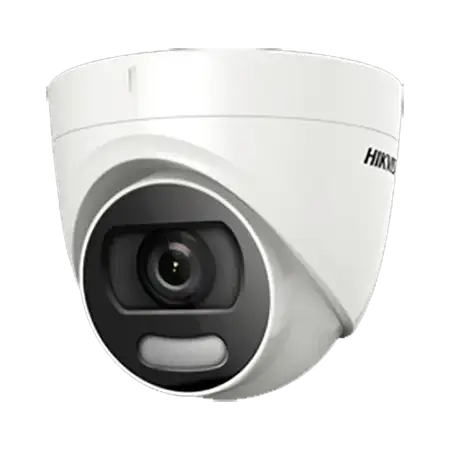

Hikvision 2MP ColorVu Fixed Turret Camera, 1920 × 1080 resolution, 24-hour color image, 2.8 mm fixed lens, Up to 20m white light distance, 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light, 3D DNR, true WDR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), Water and dust resistant (IP67).

DS-2CE72DFT-F28

Resolution

2MP (1920x1080p) Full HD

ColorVu Camera

24/7 Colored Live View

Warm Supplemental Light

Up to 20m White Light Distance

Video Content Analysis

Motion Detection, Privacy Mask

Frame Rate

1080p@25fps

Smart Features

OSD Menu, 130dB WDR, 3D DNR, BLC, HLC

Video Output Mode

Support TVI/AHD/CVI/CVBS

Protection Level

IP67 Weatherproof

Camera

Image Sensor

2 MP CMOS

Resolution

1920 (H) × 1080 (V)

Frame Rate

PAL: 1080p@25fps
NTSC: 1080p@30fps

Min. illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max. 16 times

Lens

2.8 mm fixed lens

Field of View

2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°

Lens Mount

M16

Day & Night

Color

WDR (Wide Dynamic Range)

130 dB

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Menu

Image Mode

STD/HIGH SAT

AGC

Yes

White Balance

Auto/Manual

HLC

Yes

BLC (Backlight Compensation)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

WDR

Yes

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 3 W

Protection Level

IP67

Material

Main Body: Metal Mounting Base: Plastic

White Light

Up to 20 m

Communication

HIKVISION-C

Dimensions

Ø 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")

Weight

Approx. 336 g (0.74 lb.)
