DS-2CE76D0T-EXIPF 2.8mm

prev

next

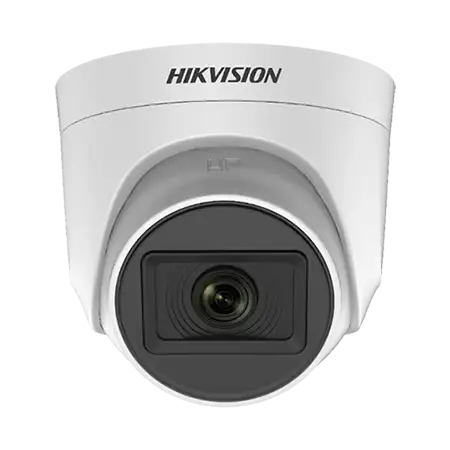

DS-2CE76D0T-EXIPF 2.8mm

Hikvision 2MP Indoor EXIR Fixed Camera, 1 pcs EXIR LEDs, 20m IR, 2MP Turret Camera, ICR, 0.02 Lux/F1.2, 12 VDC, Smart IR, DNR, Support TVI / AHD / CVI / CVBS video signal output, IP66.

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: Turbo HD

Shape: Turret

Resolution: 2MP

Technology: Infrared

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

Resolution

2MP (1920 × 1080 resolution) Indoor EXIR Fixed Turret Camera

IR Range

Up to 20m IR distance for bright night imaging

Protection

IP66 (Water & Dust Resistance)

Frame Rate

TVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

Smart Features

DWDR, BLC, D-WDR, Day & Night with ICR

Video Output Mode

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Function

Brightness, Sharpness, Mirror, Smart IR

Field Of View

Horizontal FOV: 102°

Vertical FOV: 55°

Diagonal FOV: 123°

Camera

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080p @ 25fps/30fps
AHD: 1080p @ 25fps/30fps
CVI: 1080p @ 25fps/30fps
CVBS: PAL/NTSC

Min. Illumination

0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Lens

2.8 mm Lens

Field of View

Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 123°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto

AE (Auto Exposure) Mode

DWDR, BLC, Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Mirror, Smart IR, Sharpness

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Operating Conditions

-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Consumption

Max. 3.3 W

Material

Plastic

IR Range

Up to 20 m

Communication

HIKVISION-C
