DS-2CE76D0T-LPFS 2.8mm

DS-2CE76D0T-LPFS 2.8mm

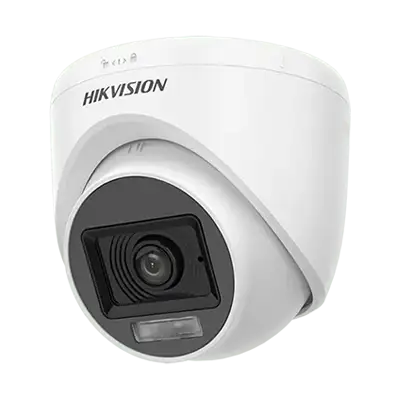

Hikvision DS-2CE76D0T-LPFS 2MP Dual Light Audio Fixed Turret Camera, 1920×1080 resolution, Up to 20m IR distance for bright night imaging, Up to 20m white light distance for bright night imaging, High quality audio with audio over coaxial cable, Built-in mic, One port for four switchable signals (TVI/AHD/CVI/CVBS), TVI: 1080P @ 30 fps, 1080P @ 25 fps, 12 VDC ± 25%.

Dual Light Audio Camera

Hikvision DS-2CE76D0T-LPFS 2MP Dual Light Audio Fixed Turret Camera,

IR Range

Up to 20m IR distance for bright night imaging

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

White Light

Up to 20m white light distance for bright night imaging

Video Output Mode

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Field Of View

Horizontal FOV: 101°

Vertical FOV:60°

Diagonal FOV: 122°

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm

Focal Length & FOV

2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°

Lens Mount

M12

Illuminator

Supplement Light Type

White Light, IR

Supplement Light Range

IR : Up to 20 m

White Light : Up to 20 m


Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC

Day/Night Mode

IR/White Light

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

Yes

White Balance

Auto/Manual

AGC

Yes

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Material

Plastic

Dimension

84.6 mm × Ø85.02 mm (3.33" × Ø3.35")

Weight

Approx. 156 g (0.34 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 3.3 W
