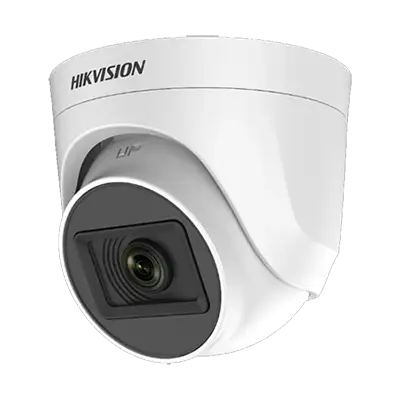

DS-2CE76H0T-ITPFS 2.8mm

Hikvision DS-2CE76H0T-ITPFS 5MP Audio Camera, 2560 × 1944 Resolution, Digital WDR, Smart IR, up to 20m IR distance, Audio over coaxial cable, Built-in Mic, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps, DWDR/BLC/HLC, Day & Night.

https://www.esco.pk/web/image/product.template/6755/image_1920?unique=724c447

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: Turbo HD
Shape: Turret
Resolution: 5MP
Audio Input / Output: Built-in Microphone
Technology: Infrared

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Resolution

5MP (2560 × 1944 Resolution) Audio Fixed Turret Turbo HD Camera

IR Range

 Smart IR, up to 20m IR distance

Built-in Mic

Audio over Coaxial Cable, Built-in Mic

Frame Rate

TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 4MP@30fps, 4MP@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

Smart Features

DWDR/BLC/HLC/Global, 2D DNR, AGC, Day & Night Mode

Video Output Mode

4 in 1 Video Output (Switchable TVI/AHD/CVI/CVBS)

Function

Brightness, Sharpness, Mirror, Smart IR

Field Of View

Horizontal FOV: 85.5°

Vertical FOV:  63.7°

Diagonal FOV: 110.7°

Camera

Image Sensor

5 MP CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) × 1944 (V)

Frame Rate

TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 4MP@30fps, 4MP@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

CVBS: PAL / NTSC

Min. illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1 / 25 s to 1 / 50, 000 s NTSC: 1 / 30 s to 1 / 50, 000 s

Lens

2.8 mm

Field of View

Horizontal FOV: 85.5°, Vertical FOV: 63.7°, Diagonal FOV: 110.7°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Audio

Built-in mic

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Menu

Image Mode

STD / HIGH-SAT

AGC

Yes

Day / Night Mode

Auto / Color / BW (Black and White)

White Balance

Auto / Manual

AE (Auto Exposure) Mode

DWDR / BLC / HLC / Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 3.7 W

Material

Plastic

IR Range

Up to 20 m

Communication

HIKVISION-C

Dimensions

Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")

Weight

Approx. 140.5 g (0.31 lb.)
