DS-2CE78D0T-LFS 2.8mm

prev

next

DS-2CE78D0T-LFS 2.8mm

Hikvision DS-2CE78D0T-LFS 2MP Smart Hybrid Light Audio Fixed Turret Camera, Up to 40 m IR distance for bright night imaging, Up to 20 m white light distance for bright night imaging, One port for four switchable signals (TVI/AHD/CVI/CVBS, High quality audio with audio over coaxial cable, built-in mic, DWDR / BLC / HLC / Global, Water and dust resistant (IP67).

Type
- Turbo HD
Shape
- Turret
Technology
- Dual Light
Audio Input / Output
- Built-in Microphone

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Get notified when back in stock

Type: Turbo HD

Shape: Turret

Technology: Dual Light

Audio Input / Output: Built-in Microphone

Description
Reviews

Dual Light Audio Camera

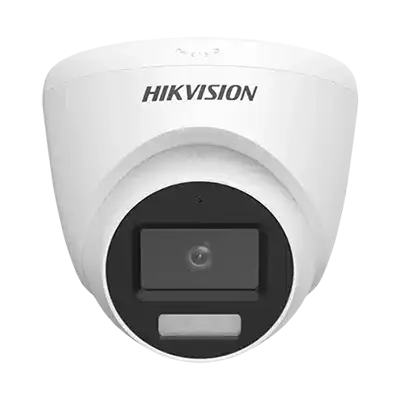

Hikvision DS-2CE78D0T-LFS 2MP Smart Hybrid Light Audio Fixed Turret Camera

IR Range

Up to 40 m IR distance for bright night imaging

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

White Light

Up to 20m white light distance for bright night imaging

Video Output Mode

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Field Of View

Horizontal FOV: 10°

Vertical FOV: 55°

Diagonal FOV: 116°

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm

Focal Length & FOV

2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°

Lens Mount

M12

Illuminator

Supplement Light Type

White Light, IR

Supplement Light Range

IR : Up to 20 m

White Light : Up to 40 m


Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Day/Night Mode

IR/White Light

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR/BLC/HLC/Global

White Balance

Auto/Manual

AGC

Yes

Interface

Video Output
Built-in Microphone

Switchable TVI/AHD/CVI/CVBS
Yes

General

Material

Body: Metal; Enclosure: Metal
IP67 Protection

Dimension

97.9 mm × Ø110 mm (3.85" × Ø4.33")

Weight

Approx. 340 g (0.75 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 3.3 W
