DS-2DE2C400MWG-E 4mm

DS-2DE2C400MWG-E 4mm

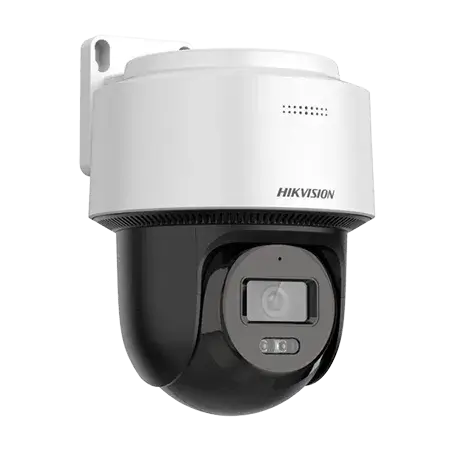

Hikvision DS-2DE2C400MWG-E 4MP IR & White light Mini PT Network Camera, 1/3" Progressive Scan CMOS, Support Human Detection and Auto-tracking Lite, Smart Hybrid Light, White light distance: up to 30m, IR distance: up to 30m, Built-in Microphone and Speaker for real-time audio security, Built-in memory card slot, Digital WDR, BLC, HLC, 3D DNR, IP66 (IEC 60529-2013).

Mini PT Network Camera

Hikvision DS-2DE2C400MWG-E 4MP IR & White light Mini PT Network Camera

Illuminator

White light distance: up to 30m, IR distance: up to 30m

Frame Rate

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Smart Features

Support Human Detection and Auto-tracking Lite, Digital WDR, BLC, HLC, 3D DNR

Audio

Built-in microphone and speaker for real-time audio security

Protection Level

Water and dust resistant (IP66)

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light

Lens

Focal Length

4 mm

FOV

4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

Aperture

F1.6

Illuminator

Supplement Light Type

IR, White Light

Supplement Light Range

White light distance: up to 30 m, IR distance: up to 30 m

IR Wavelength

850 nm

PTZ

Movement Range (Pan)

0° to 345°

Movement Range (Tilt)

0° to 80°

Pan Speed

Up to 25°/s

Tilt Speed

Up to 20°/s

Video

Main Stream

50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

H.265, H.264, MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline profile, Main profile, High profile

H.265 Type

Main profile

Audio

Audio Compression

G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC

Audio Bit Rate

16 Kbps (G.722.1) / 64 Kbps (G.711) / 32 to 192 Kbps (MP2L2) / 16 Kbps (G.726) / 16 to 64 Kbps (AAC-LC) / 8 to 48 Kbps (PCM)

Audio Sampling Rate

8 kHz, 16 kHz

Environment Noise Filtering

Yes

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour

API

ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP


Image Settings

Saturation, brightness, contrast, and sharpness adjustable by client software or web browser

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone

1 built-in microphone

On-board Storage

Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB

Built-in Speaker

1 built-in speaker

Event

Basic Event

Motion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception

Linkage

Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite

General

Power

12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W

Dimension

Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")

With package dimension: 224 mm × 164 mm × 230 mm (8.82" × 6.46" × 9.06")

Weight

Camera weight: 600 g (1.32 lb.) With package weight: 900 g (2.0 lb.)

Material

Plastic

Operating Condition

-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)

General Function

Mirror, password protection, watermark

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)

Safety

CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment

CE-RoHS (2011/65/EU), Reach (Regulation (EC) No 1907/2006)

Protection

IP66 (IEC 60529-2013)
