Hikvision DS-2DE2C600MWG-E 4mm: 6MP pan and tilt camera with a fixed 4 mm lens that pans up to 25°/s; illumination IR 30m. Motion detection alerts. Also: built-in microphone and speaker. Scroll down for details.

#6MP_IP_Camera#Built_in_Mic#IP_Camera#Built_in_Speaker#Illum_IR_30
See full specs and details Have a question? 4 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

DS-2DE2C600MWG-E 4mm

6MP Pan and Tilt Camera, 4 mm lens

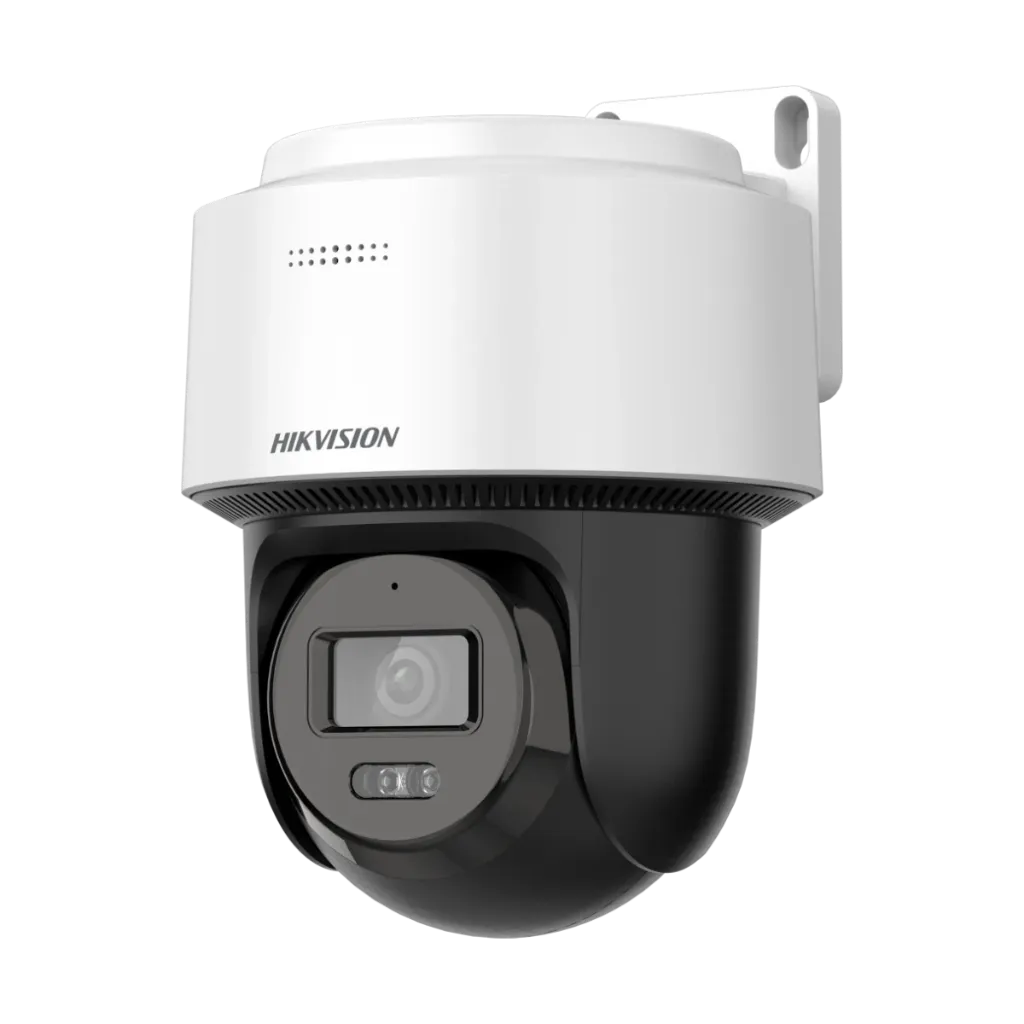

Hikvision DS-2DE2C600MWG-E 4mm 6MP Pan and Tilt Camera, 4 mm lens
  • Pan and tilt with a fixed 4 mm lens, pans up to 25°/s
  • Illumination: IR 30m
  • Motion detection alerts
  • Built-in microphone and speaker
PT camerasValue SeriesPro SeriesUltra SeriesTandemVu

What you need with this camera

The camera records on a Hikvision NVR. Add the parts below; our engineers size the system and send a free BOQ.

PartModelWhat it doesQty
RecorderHikvision NVRRecords and plays back the camera1 per system
PowerAdaptor or PoE portSized by our engineers for this model1
Network cableCat5e / Cat6Connects it to the switch1 run
MountWall or pole bracketPicked by our engineers for your site1
microSD cardup to 512 GBOptional recording inside the cameraoptional

Several cameras or a long perimeter? Tell us the distances, poles and what you need to see, and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • 6MP (3200 × 1800), 1/2.4" sensor
  • Fixed 4 mm lens, pan and tilt; pans up to 25°/s
  • Illumination: IR 30m
  • Motion detection
  • Built-in microphone and speaker
  • microSD up to 512 GB
  • IP66
Chat on WhatsApp
Camera
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.001 Lux @ (F1.6, AGC ON), B/W: 0.0005 Lux @ (F1.6, AGC ON), 0 Lux with light
Lens
Focal Length4 mm
FOV4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 97°
ApertureF1.6
Illuminator
Supplement Light TypeIR, White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm
PTZ
Movement Range (Pan)0° to 345°
Movement Range (Tilt)0° to 80°
Pan SpeedUp to 25°/s
Tilt SpeedUp to 20°/s
Video
Main Stream50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video CompressionMain stream: H.265/H.264/Smart265/Smart264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain profile, Baseline profile, High profile
H.265 TypeMain profile
Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour
Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask4 rectangular privacy masks
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone1 built-in microphone
Built-in Speaker1 built-in speaker
ResetYes
Event
Basic EventMotion detection (support alarm triggering by specified target type (human)), exception
General
Power12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 10.5 W
DimensionCamera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")
With package dimension: 224 mm × 164 mm × 230 mm (8.82" × 6.46" × 9.06")
WeightCamera weight: 620 g (1.37 lb.)
With package weight: 1000 g (2.20 lb.)
MaterialPlastic
General FunctionMirror, password protection, watermark
Approval
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
SafetyCB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU), Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013)
Questions & answers

Know before you buy

Quick answers about the DS-2DE2C600MWG-E 4mm, and how it compares.

Is it a PTZ camera?

It pans and tilts but has a fixed 4 mm lens, so it does not zoom optically. For optical zoom, see our Value and Pro PTZ cameras.

How fast does it turn?

It pans at up to 25°/s and tilts at up to 20°/s (preset speed).

What else do I need?

A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.

Can I buy it online?

PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
