DS-2DE7A232IW-AEB (T5)

DS-2DE7A232IW-AEB (T5)

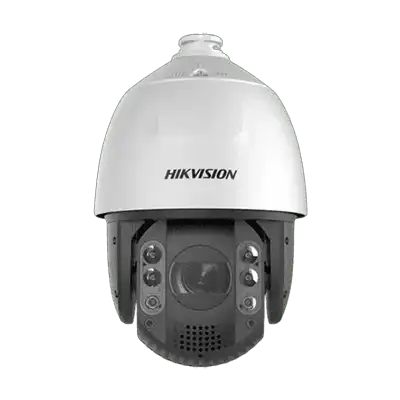

Hikvision DS-2DE7A232IW-AEB (T5) 7-inch 2MP 32X Powered by DarkFighter IR Network Speed Dome PTZ Camera, 1/2.8" progressive scan CMOS, 4.8 mm to 153 mm, Powered-by-DarkFighter technology, Audio visual alarm, 32× Optical Zoom and 16× Digital Zoom, Up to 200 m IR distance, Focuses on human and vehicle targets classification based on deep learning, Up to 5 faces captured at the same time, BLC, HLC, 3D DNR, 120dB WDR, Digital defog, EIS, Built-in memory card slot, Perimeter Protection, IP66 (IEC 60529-2013), IK10 (excluding glass window).

PTZ Camera

Hikvision DS-2DE7A232IW-AEB (T5) 7-inch 2MP 32X Speed Dome PTZ Camera

Lens

4.8 mm to 153 mm

32× optical zoom

16× digital zoom

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

IR Range

Up to 200m IR Range

Frame Rate

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Smart Features

120dB WDR, 3D DNR, BLC, HLC, ROI, Day & Night with ICR, Digital Defog

PTZ

Pan Range: 360°endless, Tilt Range: -15°-90° (Auto Flip ), Park Action
8 patrols, up to 32 presets for each patrol, 4 pattern scans

3D Positioning Support, PTZ Position, Scheduled Task

Deep Learning Function

Face Capture: Detects up to 5 faces simultaneously.

Focuses on human and vehicle targets classification based on deep learning

Audio Visual Alarm

White flashing light & audible warning

Protection Level

IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection

Camera

Max. Resolution

1920 × 1080

Image Sensor

1/2.8" progressive scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/1 s to 1/30000 s

Slow Shutter

Yes

Day & Night

IR cut filter

Zoom

32x optical, 16x digital

Lens

Focal Length

4.8 mm to 153 mm

Zoom Speed

Approx. 4.8 s

FOV

Horizontal field of view: 50.8° to 2.6° (wide-tele),

Vertical field of view: 29.4° to 1.5° (wide-tele),

Diagonal field of view:57.4° to 3° (wide-tele)

Aperture

Max. F1.6

Focus

Auto, semi-auto, manual, rapid focus

Illuminator

Supplement Light Type

IR

Supplement Light Range

IR Distance: up to 200 m

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Power-off Memory

Yes

Park Action

Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,

panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)



Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264

Sub-stream: H.265 / H.264 / MJPEG

Third stream: H.265 / H.264 / MJPEG

Video Bit Rate

32 kbps to 16384 kbps

H.264 Type

Baseline Profile / Main Profile / High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Network

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets

API

Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

120 dB

Defog

Digital defog

Image Stabilization

EIS

Regional Exposure

Yes

Regional Focus

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Privacy Mask

24 programmable polygon privacy masks, mask color or mosaic configurable

SNR

> 52 dB

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD / SDHC / SDXC card, up to 256 GB

Alarm

2 inputs, 1 output

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;

1 output (line out), line level, output impedance: 600 Ω

Reset

Yes

Built-in Speaker

1 built-in speaker with effective distance reaching max. 30 meters

Event

Basic Event

Motion detection, video tampering alarm, exception, alarm input and output

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Smart Tracking

Manual tracking, auto-tracking

Alarm Linkage

Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Face Capture

Detects up to 5 faces simultaneously.

Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General

Power

24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);

Hi-PoE

Operating Condition

-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Demist

Yes

Material

ADC12

Dimension

Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")

Weight

Approx. 5 kg (11.03 lb.)

Approval

Protection

IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection,

surge protection and voltage transient protection

EMC

FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2019);

KC (KN 32: 2015, KN 35: 2015)
