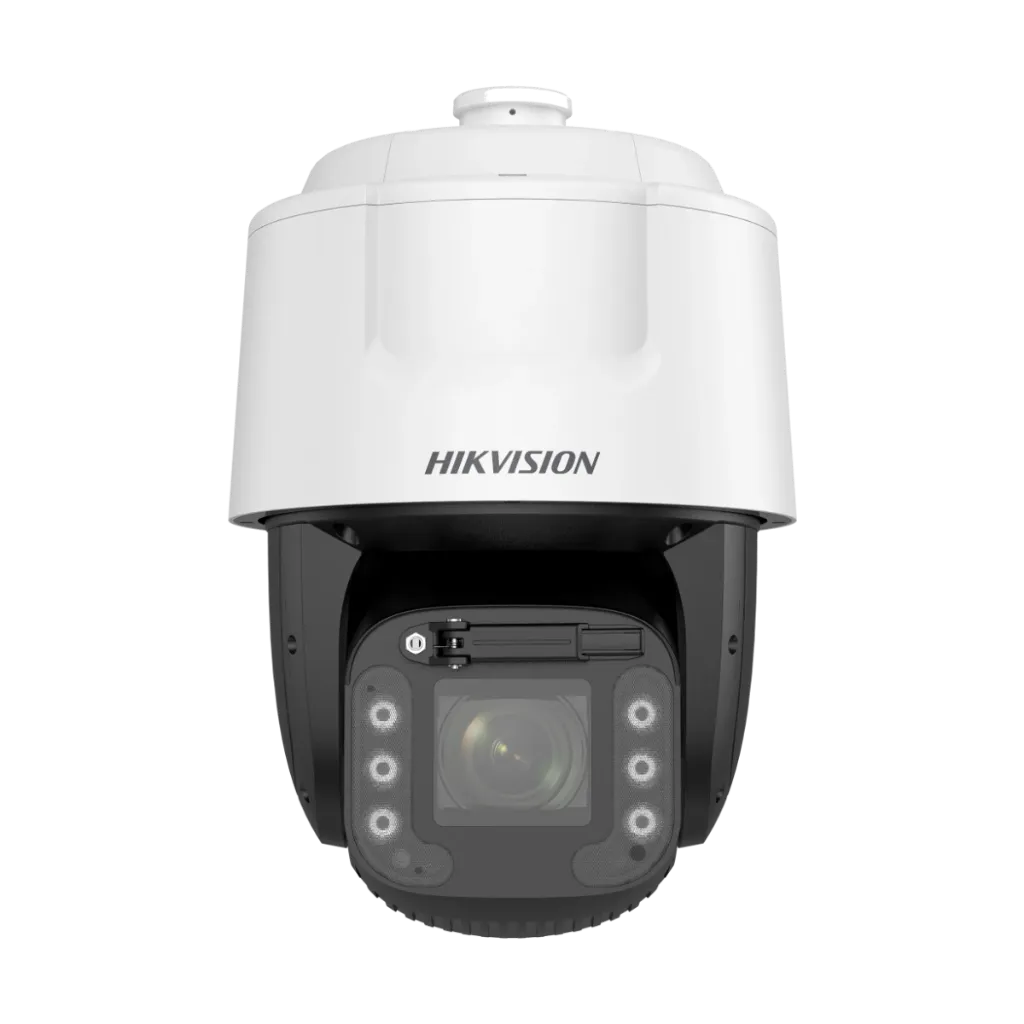

DS-2DF6C445IWG1-ELW
Ultra Series 6-inch 4MP 45x IR PTZ Camera
- 45x optical zoom, pans up to 400°/s
- Illumination: IR 250m
- Auto-tracking: follows a moving target
- Wiper
DS-2DF6C445IWG1-ELW
Ultra Series 6-inch 4MP 45x IR PTZ Camera
- 45x optical zoom, pans up to 400°/s
- Illumination: IR 250m
- Auto-tracking: follows a moving target
- Wiper
Key specs
- Ultra Series, 6-inch, 4MP (2688 × 1520), 1/2.8" sensor, 120 dB WDR
- 45x optical zoom, 4 to 180 mm, EIS (gyroscope); pans up to 400°/s
- Illumination: IR 250m
- Line crossing, intrusion, region entrance and exit, people and vehicle filter
- Face capture
- Auto-tracking
- Wiper, alarm in/out 7/2, microSD up to 256 GB
- IP67, IK10; power: Hi-PoE (802.3bt) or 36 VDC
| Camera | |
|---|---|
| Max. resolution | 2688 × 1520 (4MP) |
| Image sensor | 1/2.8" |
| WDR | 120 dB |
| Lens and light | |
| Focal length | 4 to 180 mm |
| Optical zoom | 45x |
| Image stabilisation | EIS (gyroscope) |
| Illumination | IR 250m |
| Pan and tilt | |
| Size | 6-inch speed dome |
| Pan / tilt speed | up to 400°/s / 300°/s (preset) |
| Dimensions | Ø 218.4 mm × 324.2 mm |
| Smart functions | |
| Events | line crossing, intrusion, region entrance and exit |
| Deep learning | people and vehicle classification |
| Face capture | Yes |
| Smart tracking | Auto-tracking |
| General | |
| Wiper | Yes |
| Alarm in / out | 7/2 |
| Memory card | microSD up to 256 GB |
| Power | Hi-PoE (802.3bt) or 36 VDC, max. 60 W |
| Protection | IP67, IK10 |
Know before you buy
Quick answers about the DS-2DF6C445IWG1-ELW, and how it compares.
How far can it see?
45x optical zoom (4 to 180 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR 250m.
How fast does it turn?
It pans at up to 400°/s and tilts at up to 300°/s (preset speed).
Does it follow a moving target?
Yes. With auto-tracking the camera pans, tilts and zooms to keep a moving target in view.
Which alerts does it give?
Line crossing, intrusion, region entrance and exit. Deep learning tells people from vehicles, so leaves, rain and animals raise fewer false alarms. It also captures faces.
How is it powered?
A Hi-PoE (802.3bt) switch port powers it over the network cable; a standard PoE or PoE+ port is not enough. Or use a 36 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
