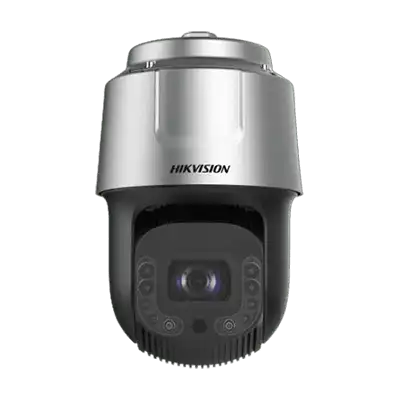

DS-2DF8C442IXS-AEL (T5)
Hikvision DS-2DF8C442IXS-AEL (T5) 8-inch 4MP 42X Dark fighter IR Network Speed Dome PTZ Camera, 42× optical zoom and 16× digital zoom, up to 400 m IR, supports face capture, Supports road traffic to detect vehicles, 360° pan, -20° to 90° tilt, BLC, HLC, 3D DNR, 140 dB WDR, optical defog, ≥ 52 dB SNR, SD card Slot, 7 Alarm Inputs & 2 Alarm Output, smart tracking, Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window.
Type: IP |
Shape: PTZ |
Resolution: 4MP |
Technology: Infrared |
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
PTZ Camera
Hikvision DS-2DF8C442IXS-AEL (T5) 8-inch 4MP 42X Speed Dome PTZ Camera
Lens
6.0 mm to 252 mm
42× Optical Zoom
16× Digital Zoom
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
IR Range
Up to 400m IR Range
Frame Rate
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
DarkFighter
Excellent low-light performance with DarkFighter technology
PTZ
Pan Range: 360°endless, Tilt Range: -20°-90°, Park Action
Up to 300 Preset, Up to 8 patrols Scan, Up to 4 pattern scans
3D Positioning Support, Scheduled Task, PTZ Freezing
Smart Features
140dB 4WDR, DNR, BLC, HLC, ROI, Day & Night with ICR, Defog, Smart IR
Supports face capture to detect, capture, grade, & select faces in motion
Supports road traffic to detect vehicles
Interface
Built-in SD Card Slot, Audio I/O, Alarm I/O : 7/2
Protection Level
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), 6000V Lightning Protection,
Surge Protection and Voltage Transient Protection
Camera |
|
Image Sensor |
1/1.8" progressive scan CMOS |
Min. Illumination |
Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Speed |
1/1 s to 1/30,000 s |
Slow Shutter |
Yes |
Day & Night |
IR cut filter |
Zoom |
42x optical, 16x digital |
Max. Resolution |
2560 × 1440 |
Lens |
|
Focus |
Auto, semi-auto, manual, rapid focus |
Focal Length |
6.0 mm to 252 mm |
Zoom Speed |
Approx. 4.5 s |
FOV |
Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
Aperture |
Max. F1.2 |
Illuminator |
|
Supplement Light Type |
IR |
Supplement Light Range |
Up to 400m |
Smart Supplement Light |
Yes |
PTZ |
|
Movement Range (Pan) |
360° |
Movement Range (Tilt) |
-20° to 90° (auto flip) |
Pan Speed |
Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s |
Tilt Speed |
Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
Proportional Pan |
Yes |
Presets |
300 |
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
Pattern Scan |
4 pattern scans, record time over 10 minutes for each scan |
Power-off Memory |
Yes |
Park Action |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
3D Positioning |
Yes |
PTZ Status Display |
Yes |
Preset Freezing |
Yes |
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
Video |
|
Main Stream |
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) |
Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 / MJPEG |
Video Bit Rate |
32 Kbps to 16384 Kbps |
H.264 Type |
Baseline Profile / Main Profile / High Profile |
H.265 Type |
Main Profile |
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
Region of Interest (ROI) |
8 fixed regions for each stream |
Network |
|
Network Storage |
NAS (NFS, SMB/ CIFS), ANR |
Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
Image |
|
Day/Night Switch |
Day, night, auto, scheduled-switch |
Image Enhancement |
BLC, HLC, 3D DNR |
Wide Dynamic Range (WDR) |
140 dB |
Defog |
Optical defog |
Image Stabilization |
EIS (Built-in gyroscope to improve EIS performance) |
Regional Exposure |
Yes |
Regional Focus |
Yes |
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
Image Parameters Switch |
Yes |
Privacy Mask |
Up to 24 masks, mosaic mask, mask color configurable, rectangle region |
SNR |
≥ 52 dB |
Interface |
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
On-board Storage |
Built-in memory card slot, support microSD / microSDHC / microSDXC cards, up to 256GB |
Alarm |
7 inputs, 2 outputs |
Audio |
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
Video Output |
1.0 V[p-p]/75 Ω, PAL, NTSC, BNC connector |
Event |
|
Basic Event |
Audio exception, motion detection, video tampering alarm, alarm input, alarm output, exception |
Smart Event |
Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection |
Smart Tracking |
Manual tracking, auto-tracking |
Alarm Linkage |
Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording |
Deep Learning Function |
|
Face Capture |
Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
Face Comparison |
Yes |
Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
Road Traffic and Vehicle Detection |
|
Road Traffic |
Support vehicle detection (license plate number ,vehicle model, and vehicle color recognition) |
General |
|
Operating Condition |
Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
Power Consumption and Current |
24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), PoE 802.3 bt (Max. 50 W, including max. 18 W for IR and max. 6 W for heater) |
Dimension |
Ø 267 mm × 430 mm (Ø 10.51" × 16.93") |
Weight |
Approx. 9.6 kg (21.16 lb.) |
Approval |
|
EMC |
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) |
Safety |
UL (UL 62368-1) CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1: 2014+A11: 2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) |
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
