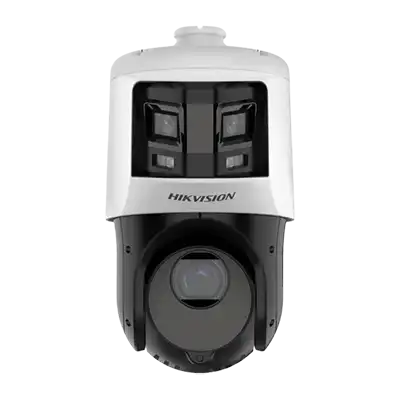

DS-2SE4C425MWG-E/26 (F0)

Camera

Image Sensor

[Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS

Max. Resolution

[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440

Min. Illumination

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0

Lux with IR

Shutter Speed

1 s to 1/30,000 s

Slow Shutter

yes

Day & Night

ICR

Zoom

[PTZ channel] 25 × optical, 16 × digital

White Balance

auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB

Lens

Focal Length

[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical

Zoom Speed

[PTZ channel]: approx. 3.6 s

FOV

[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°; [PTZ channel]:

Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus

semi-auto, manual, auto

Aperture

[Bullet channel]: F1.0; [PTZ channel]: F1.6

Illuminator

Supplement Light Type

[PTZ channel]: IR; [Bullet channel]: White Light

Smart Supplement Light

Yes

Supplement Light Range

[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s

Tilt Speed

tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Zoom

yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Power-off Memory

yes

Park Action

preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Exception Detection

IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Restart

Video

Region of Interest (ROI)

8 fixed regions for each stream

Main Stream

[Bullet channel]

50 Hz: 25 fps (3632 × 1632, 3680 × 1656)

60 Hz: 30 fps (3632 × 1632, 3680 × 1656)

[PTZ channel]

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[Bullet channel]

50 Hz: 25 fps (1200 × 536, 960 × 432)

60 Hz: 30 fps (1200 × 536, 960 × 432)

[PTZ channel]

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[Bullet channel]

No

[PTZ channel]

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265, H.264, MJPEG

Video Bit Rate

32 kbps to 16384 kbps

H.264 Type

baseline profile, main profile, high profile

H.265 Type

main profile

H.264+

yes

H.265+

yes

SVC

yes

Smart Features

Smart Record

ANR, Dual-VCA

Network

API

ISAPI, SDK, ISUP, ONVIF

Network Storage

NAS (NFS, SMB/ CIFS), ANR

Protocols

IPv4/IPv6, HTTP, HTTPS,802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets, SRTP

Security Measures

Authenticated username and password, MAC address binding, HTTPS encryption,802.1X authenticated access, IP address filter


Image Settings

sharpness, saturation, brightness, contrast

Day/Night Switch

day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

[Bullet channel] Digital WDR [PTZ channel] 120 dB WDR

SNR

≥ 52 dB

Defog

Digital defog

Image Stabilization

EIS

Image Enhancement

BLC, HLC, 3D DNR

Regional Focus

Yes

Regional Exposure

Yes

Image Parameters Switch

Yes

Privacy Mask

[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Interface

Communication Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB

Alarm Input

1 alarm input

Alarm Output

1 alarm output

Audio Input

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

Audio Output

1 audio output, line level, impedance: 600 Ω

Reset

yes

Event

Basic Event

Motion detection, video tampering alarm, exception, alarm input and output

Smart Event

audio exception detection, region entrance detection, region exiting detection, intrusion detection, Line crossing detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, and PTZ actions (such as preset, patrol scan, pattern scan)

Smart Linkage

panorama linkage

Deep Learning Function

Face Capture

Detects up to 5 faces simultaneously,

Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

General

General Function

mirror, watermark, password protection

Power

12VDC, PoE+

Power Consumption and Current

Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light

Operating Conditions

-30℃ to 65℃ (-22°F to 149°F) , humidity lower than  90%RH

Demist

Demist by heating the glass

Material

ADC12

Dimensions

Ø 166 mm × 302.6 mm (Ø 6.5" × 11.9")

Weight

Approx. 2.4 kg (13.2 lb.)

Approval

Protection

IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
