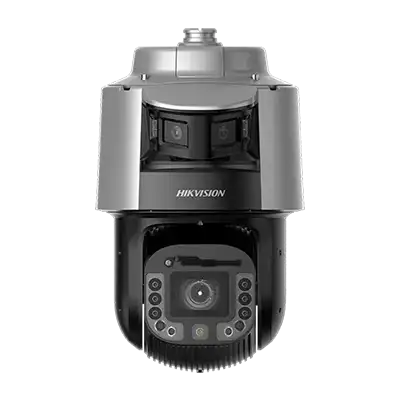

DS-2SF8C442MXS-DLW (24F0)(P3)

Camera

Image Sensor

[Bullet channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS

Min. Illumination

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with Light,

[PTZ channel] Color: 0.0005 Lux @ F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON),

0 lux with IR

Shutter Speed

1/1 s to 1/30000 s

Slow Shutter

Yes

Day & Night

[Bullet channel] Color, [PTZ channel] IR cut filter

Zoom

[PTZ channel] 42 × optical, 16 × digital

Max. Resolution

[Bullet channel] 3840 × 1080, [PTZ channel] 2560 × 1440

Lens

Focus

Auto, semi-auto, manual

Focal Length

[Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 247.8 mm

Zoom Speed

[Bullet channel] No, [PTZ channel] approx. 5.5 s

FOV

[Bullet channel]

horizontal field of view: 190° ± 5°, vertical field of view: 50 ± 5°, diagonal field of view: 198 ± 5°,

[PTZ channel]

horizontal field of view: 56.6° to 3.1°, vertical field of view:       34.2 ° to 1.1°, diagonal field of view:         67.1° to 2.3°

Aperture

[Bullet channel] F1.0, [PTZ channel] F1.2

Illuminator

Supplement Light Range

[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

[PTZ channel] 0° to 360°

Movement Range (Tilt)

[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°

Pan Speed

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

[Bullet channel] tilt speed configurable, [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

[Bullet channel] No, [PTZ channel] Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

[Bullet channel] 50 Hz: 25 fps (3840 × 1080), 60 Hz: 24 fps (3840 × 1080), [PTZ channel]

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[Bullet channel] 50 Hz: 25 fps (1920 × 536), 60 Hz: 24 fps (1920 × 536), [PTZ channel]

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288),

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[Bullet channel] No, [PTZ channel]

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264,
Sub-stream: H.265 / H.264 / MJPEG,
Third stream: H.265 / H.264 / MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile, Main profile, High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

Audio Bit Rate

32 to 192 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz, 16 kHz, 32 kHz, 48 kHz

Environment Noise Filtering

Yes

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, FTP

Security

Password protection, complicated password, IP address filter, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), watermark


Day/Night Switch

Day, night, auto, schedule

Image Enhancement

HLC, 3D DNR

Wide Dynamic Range (WDR)

[Bullet channel] No, [PTZ channel] 120 dB

Defog

Optical defog

Image Stabilization

EIS

Regional Exposure

Yes

Regional Focus

[Bullet channel] No, [PTZ channel] Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

SNR

≥ 52 dB

Supplement Detection

Satellite Positioning

No

Gyroscope

Yes

Compass

No

Interface

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 256 GB

Alarm

7 input(s), 2 output(s)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset

Yes

Event

Basic Event

[PTZ channel] video tampering alarm

[PTZ channel & bullet channel] alarm input and output, exception

Smart Event

[PTZ channel & bullet channel] audio exception detection

[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection

Auto Tracking

[PTZ channel] yes

Smart Linkage

3D positioning

Alarm Linkage

[Bullet channel] no

[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Multi-Target-Type Detection

[Bullet channel] no

[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

General

General Function

mirror, password protection

Power

36 VDC ± 25%, max. 70 W, including max. 6 W for heater and max. 6 W for supplement light of bullet channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channel

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing), For speaker: -30 °C to 55°C (-22°F to 131°F)

Wiper

Yes

Demist

Yes

Material

ADC12

Dimension

Ø290 mm × 453.2 mm (Ø11.42" × 17.84")

Weight

Approx. 11.5 kg (25.35 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN

61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014), RCM (AS/NZS CISPR 32:

2015), IC (ICES-003: Issue 7), KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1), CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017),

BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005), LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection
