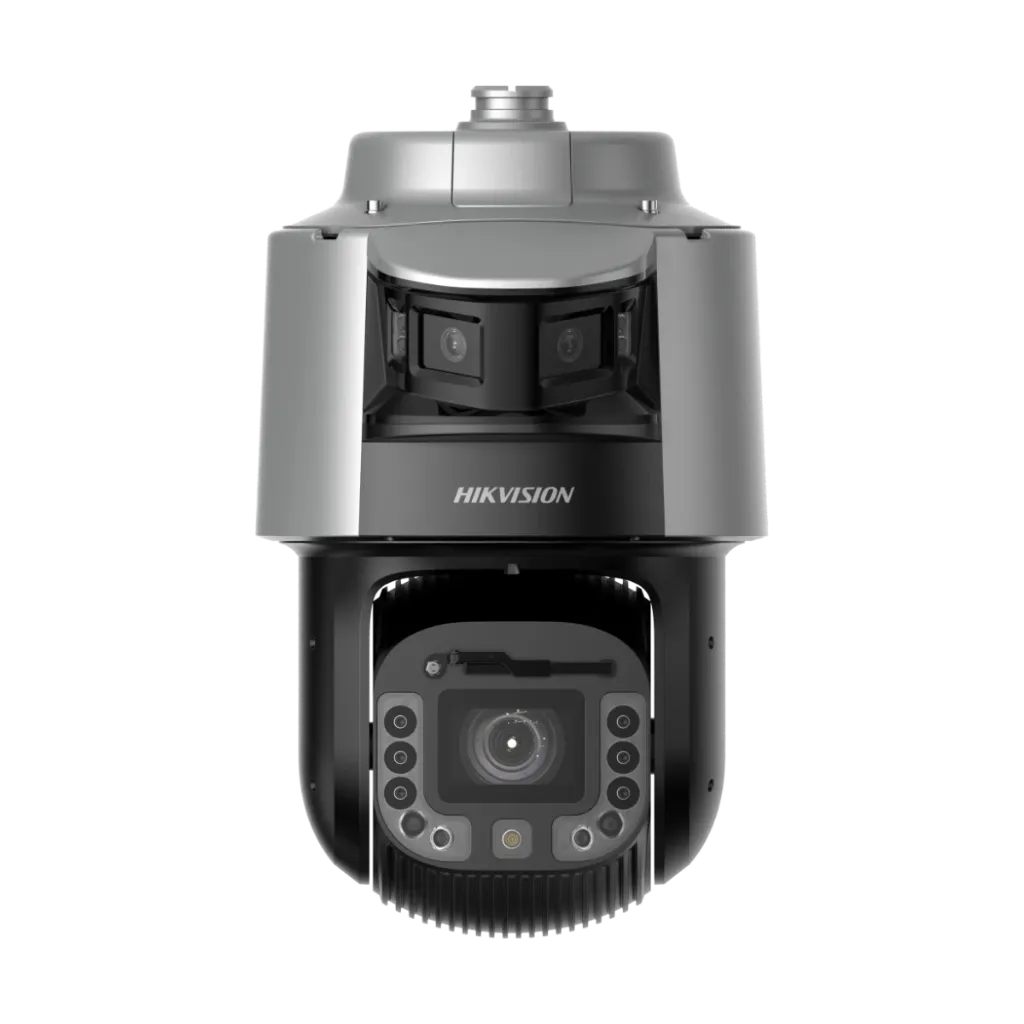

DS-2SF8C848MXG1-ELWY/26(F0)
Ultra Series 8-inch TandemVu: 6MP wide lens + 8MP 48x PTZ
- Wide 190° lens plus 48x optical zoom, pans up to 240°/s
- Illumination: Laser/White 500m/30m
- Auto-tracking 3.0: follows a moving target
- Strobe light and audio alarm
DS-2SF8C848MXG1-ELWY/26(F0)
Ultra Series 8-inch TandemVu: 6MP wide lens + 8MP 48x PTZ
- Wide 190° lens plus 48x optical zoom, pans up to 240°/s
- Illumination: Laser/White 500m/30m
- Auto-tracking 3.0: follows a moving target
- Strobe light and audio alarm
Key specs
- Ultra Series, 8-inch; PTZ lens: 8MP (3840 × 2160), 48x optical zoom, 6.25 to 300 mm; pans up to 240°/s
- Wide lens: 6MP (3680 × 1656), 4 mm, 190° view
- Illumination: Laser/White 500m/30m (laser on the PTZ lens, white light on the wide lens)
- Line crossing, intrusion, region entrance and exit, unattended baggage and object removal, people and vehicle filter
- Face capture, up to 30 faces at once; face comparison libraries
- Auto-tracking 3.0; wide lens to PTZ: auto-tracking, tracking takeover and linked tracking capture
- Strobe light and audio alarm
- Wiper, alarm in/out 7/2, microSD up to 1 TB
- IP67, IK10, TVS 6000 V, NEMA 4X anti-corrosion; power: Hi-PoE (802.3bt, Class 8) or 36 VDC
| Camera | |
|---|---|
| PTZ lens resolution | 3840 × 2160 (8MP) |
| Wide lens | 3680 × 1656, 4 mm, 190° view |
| Image sensor | 1/1.2" |
| WDR | 140 dB |
| Lens and light | |
| Focal length | 6.25 to 300 mm |
| Optical zoom | 48x |
| Illumination | Laser/White 500m/30m (PTZ lens / wide lens) |
| Pan and tilt | |
| Size | 8-inch speed dome |
| Pan / tilt speed | up to 240°/s / 200°/s (preset) |
| Dimensions | Ø 290 mm × 453.2 mm |
| Smart functions | |
| Events | line crossing, intrusion, region entrance and exit, unattended baggage and object removal |
| Deep learning | people and vehicle classification |
| Face capture | up to 30 faces at once |
| Face comparison | Yes, face libraries |
| Smart tracking | Auto-tracking 3.0 |
| Wide lens to PTZ linkage | auto-tracking, tracking takeover and linked tracking capture |
| Licence plate recognition | checkpoint scenario |
| General | |
| Active deterrence | strobe light and audio alarm |
| Wiper | Yes |
| Alarm in / out | 7/2 |
| Memory card | microSD up to 1 TB |
| Power | Hi-PoE (802.3bt, Class 8) or 36 VDC, max. 90 W |
| Protection | IP67, IK10, TVS 6000 V, NEMA 4X anti-corrosion |
Know before you buy
Quick answers about the DS-2SF8C848MXG1-ELWY/26(F0), and how it compares.
How far can it see?
48x optical zoom (6.25 to 300 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination Laser/White 500m/30m (laser on the PTZ lens, white light on the wide lens).
How fast does it turn?
It pans at up to 240°/s and tilts at up to 200°/s (preset speed).
Why two lenses?
The wide 6MP lens (190° view) records the whole area all the time, while the PTZ lens zooms in on what matters, so nothing is missed while the PTZ looks elsewhere. Linkage between the two: auto-tracking, tracking takeover and linked tracking capture.
Does it follow a moving target?
Yes. With auto-tracking 3.0 the camera pans, tilts and zooms to keep a moving target in view.
Which alerts does it give?
Line crossing, intrusion, region entrance and exit, unattended baggage and object removal. Deep learning tells people from vehicles, so leaves, rain and animals raise fewer false alarms. It also captures faces (up to 30 at once). At checkpoints it can read licence plates.
How is it powered?
A Hi-PoE (802.3bt) switch port powers it over the network cable; a standard PoE or PoE+ port is not enough. Or use a 36 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
