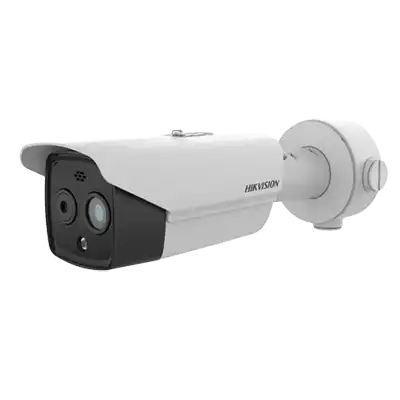

DS-2TD2628-3/QA

Hikvision DS-2TD2628-3/QA Thermal & Optical Bi-spectrum HeatPro Network Bullet Camera, 256 × 192 thermal resolution, Vanadium Oxide Uncooled Focal Plane Arrays, 3.6 mm focal length, 50.0° × 37.3° (H × V) FOV, 2688 x 1520 optical resolution, 1/2.7" Progressive Scan CMOS, 4.3mm focal length, 8 μm to 14 μm spectral range, vehicle/human classification, alarm for fire prevention -20°C to 150°C temperature range,120dB WDR, DDE, 3D DNR, target coloration, up to 30m IR Range, Up to 30m White Light Range, audible and visual alarm, up to 8 VCA rules in total, Support up to 256 GB SD card Slot, Fire detection, smoking detection, sun-reflection filter, IP67 & IK10 protection.

https://www.esco.pk/web/image/product.template/13624/image_1920?unique=5d5d589
  • Type
  • Shape
  • Resolution
  • Technology
  • Thermal Features

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to wishlist Compare
Type: IP
Shape: Bullet
Resolution: 4MP
Technology: Dual Light
Thermal Features: Heat Pro (Fire Detection) / Perimeter Protection

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.




HeatPro

Thermal & Optical Bi-Spectrum Network Camera

Hikvision DS-2TD2628-3/QA Thermal & Optical Bi-spectrum HeatPro Bullet Camera

Resolution

Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Audio & Visual Alarm

Visual Alarm: Yes, White light alarm with adjustable flashing frequencies

Audio Alarm: Yes, for two types of audible alarm

IR Range

IR Distance: Up to  30m, White Light Range: Up to 30m

Thermal Imaging Module Function

Image processing technology: linear, histogram, self-adaptive thermal AGC mode

Smart Functions

Support Smoking detection algorithm & sun-reflection filter, 4 VCA rule (line crossing, intrusion, region entrance & exiting), Fire detection, smoking detection, sun-reflection filter

Smart Features

120dB WDR, 3 temperature measurement rule types, Video content analysis: vehicle/human classification

Interface

Built-in SD Card Slot, Audio I/O, Alarm I/O: 2/2

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8 μm to 14 μm

NETD

<40 mK (25°C, F1.0)

Focal Length

3.6 mm

IFOV

3.33 mrad

Field of View

50.0° × 37.3° (H × V)

Min. Focusing Distance

0.5 m

Aperture

F1.0

Digital Zoom

×2, ×4

Optical Module

Image Sensor

1/2.7" Progressive Scan CMOS

Resolution

2688 × 1520

Min. Illumination

0.0089 Lux @ (F1.6,AGC ON) ,0 Lux with IR

Shutter Speed

1 s to 1/100,000 s

Focal Length

4.3 mm

Field of View

84.0° × 43.1° (H × V)

Aperture (Range)

F1.6

WDR

120 dB

Image Effect

Target Coloration

Yes. Supported in white hot and black hot mode.

Illuminator

IR Distance

Up to 30 m

IR Intensity and Angle

Automatically adjusted

Audible and Visual Alarm

White Light Range

Up to 30 m

Visual Alarm

Yes. White light alarm with adjustable flashing frequencies

Audio alarm

Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)

Smart Function

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)

Temperature Range

-20°C to 150°C (-4°F to 302°F)

Temperature Accuracy

± 8°C (± 14.4°F)

General Function

Fire detection, smoking detection, sun-reflection filter

Video and Audio

Main Stream

Thermal:

25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

Optical:

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

Thermal:

25 fps (704 × 576, 640 × 512, 320 × 240)

Optical:

50 Hz: 25 fps (704 × 576, 352 × 288)

60 Hz: 30 fps (704 × 480, 352 × 240)

Video Compression

Main Stream: H.265 / H.264

Sub-Stream: H.265 / H.264 / MJPEG

Audio Compression

G.722.1 / G.711ulaw / G.711alaw / MP2L2 / G.726 / PCM

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP, TLS

Network Storage

MicroSD / SDHC / SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

API

ISAPI, HIKVISION SDK, ISUP, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Interface

Alarm Input

2, alarm input (0-5 VDC)

Alarm Output

2, alarm output (alarm response actions configurable)

Alarm Action

Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email

Audio Input

1, 3.5 mm Mic in/Line in interface

Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio Output

Linear level, impedance: 600 Ω

Communication Interface

1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)

Analog Output

1.0V [p-p] / 75Ω, PAL / NTSC / BNC

General

Power Supply

24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3)

Power Consumption

24 VAC ± 25%: 0.8 A, Max.8.5 W

12 VDC ± 25%: 0.7 A, Max.8.5 W

PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W

Working Temperature/Humidity

Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less

Protection Level

IP67 Standard

TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing

Dimensions

321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")

Weight

1550 g (3.41 lb)
