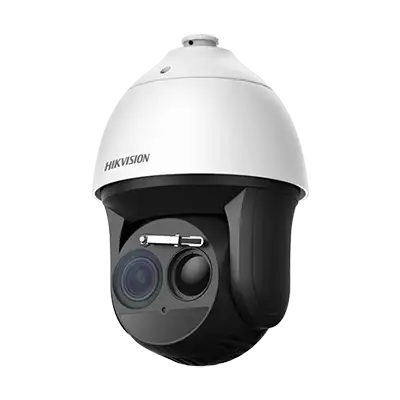

DS-2TD4167-50/W

Hikvision DS-2TD4167-50/W Thermal & Optical Bi-spectrum Network Speed Dome, Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exit, Temperature exception alarm for fire prevention, Fire detection algorithm, 640 × 512 (the resolution of output image is 640 × 512) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1), Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR, Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking, Smart tracking linkage: thermal view and optical view, Thermal channel supports EIS, conflicted with intelligent function, Smoke detection for fire prevention. MicroSD/SDHC/SDXC card Slot.
Optical Module:
Image Sensor 1/1.8" Progressive Scan CMOS, Resolution: 2688 × 1520, 4MP, Min. Illumination: Color: 0.005 Lux @(F1.3,AGC ON), B/W: 0.001 Lux @(F1.3, AGC ON), Up to 150m IR Distance, Optical Defog.
IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection.

https://www.esco.pk/web/image/product.template/12518/image_1920?unique=f554e07
  • Type
  • Shape
  • Resolution
  • Technology
  • Thermal Features

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Type: IP
Shape: PTZ
Resolution: 4MP
Technology: Infrared
Thermal Features: Heat Pro (Fire Detection) / Perimeter Protection

Thermal Module

Image Sensor

VOx Uncooled Focal Plane Arrays

Resolution

640 × 512

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

Less than 40 mK (@ 25 °C,F#=1.0)

Focal Length

50 mm

Focus Mode

Athermalized

IFOV

0.34 mrad

Aperture

F1.0

Field of View

12.4° × 9.9° (H × V)

Min. Focusing Distance

50m

Digital Zoom

×2, ×4, ×8

Optical Module

Image Sensor

1/1.8" Progressive Scan CMOS

Resolution

2688 × 1520, 4MP

Min. Illumination

Color: 0.005 Lux @(F1.3AGC ON), B/W: 0.001
Lux @(F1.3
AGC ON)

Field of View

56.6° ×33.7° (H × V)~1.8° ×1.0° (H × V)

Focal Length

6-240 mm, 40x

Aperture (Range)

F1.3-F4.6

Focus Mode

Auto / Semi-auto / Manual

Digital Zoom

×2, ×4, ×8, ×16

Shutter Speed

1s to 1/30,000s

WDR

120 dB

Optical Defog

Yes

Image Effect

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Supported in white hot and black hot mode

PTZ

Movement Range

Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)

Pan Speed

Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s

Tilt Speed

Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s

Proportional Zoom

Yes

Presets

300 in total, 273 are configurable.

Patrol Scan

8; Up to 32 Presets Per Patrol

Pattern Scan

4; More Than 10 Minutes Per Pattern

Power Off Memory

Yes

Park

Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan

PT Status

Turn On/Turn Off

Illuminator

IR Distance

Up to 150m

IR Intensity and Angle

Automatically adjusted

Smart Function

VCA

Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene

Temperature Measurement

Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)

Temperature Range

-20 °C to 150 °C (-4 °F to 302 °F)

Temperature Accuracy

± 8 °C (±14.4 °F)

Fire Detection

Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

Main Stream

Thermal channel

50fps (1920 × 1080, 1280 × 960, 1280 × 720704×576640×512384×288)

Optical channel

50Hz:25fps (2688 × 15201920 × 1080, 1280 × 960, 1280 × 720)

60Hz:30fps (2688 × 15201920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream

Thermal channel

50fps (704×576640×512384×288)

Optical channel

50Hz: 25fps (704 × 576, 352 × 288)

60Hz: 30fps (704 × 576, 352 × 288)

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Network Storage

MicroSD / SDHC / SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

API

ISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Client

iVMS-4200, Hik-Connect

Interface

Alarm Input

7-ch inputs (0-5 VDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable

Alarm Action

Preset / Patrol Scan / Pattern Scan / SD Card Record / Relay Output / Smart capture / FTP upload / Email linkage

Audio Input

1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio Output

Linear Level; Impedance: 600 Ω

Communication Interface

1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface

Analog Video Output

1.0 V [p-p]/75 Ω, BNC for thermal channel

General

Power Supply

24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%

Power Consumption

65W Max

Work Temperature/Humidity

From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less

Wiper

Yes

Protection Level

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimension

220 mm × 410 mm × 198.6 mm (8.66" × 16.15" × 7.82")

Weight

Approx. 9kg (19.84 lb)
