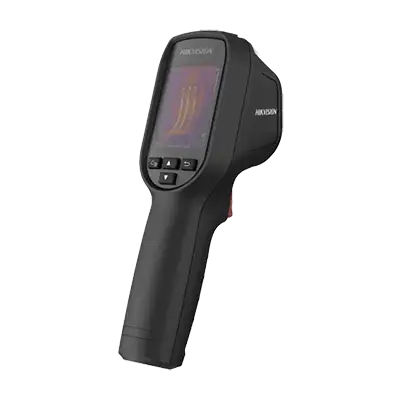

DS-2TP31B-3AUF

DS-2TP31B-3AUF

Hikvision Thermographic Handheld Camera, High sensitivity thermal module with 160 x 120 resolution, High quality 320 x 240 resolution 2.4'' LCD display, Temperature Range: -20 - 550° C, Accuracy: Up to ±2° C, ±2%, Thermometry Distance D:S = 75:1, Built-in rechargeable Li-ion battery, Device supports 4 palettes, IP54, Working Temperature -10 °C to 50 °C

Thermal Resolution

High sensitivity sensor with 160 x 120 resolution

LCD Display

High quality 320 x 240 resolution 2.4'' LCD display

Palettes

Black hot, White hot, Rainbow, Ironbow

Thermography

Thermometry Range -20 °C to 550 °C (-4 °F to 1022 °F)

Thermometry Accuracy Max (±2 °C, ±2%)

Thermometry Distance D:S = 75:1

Laser Light Supplement:

Long-distance laser light supplement to point the thermography target.

Battery

Rechargeable Lithium Battery

Storage

Replaceable memory card (default 8G, support up to 128G storage)

Protection Level

IP54

Thermal Module

Image sensor

Uncooled Focal Plane Arrays

Max. Resolution

160 × 120

Pixel Pitch

17μm

Response waveband

8μm to 14μm

NETD

< 40mK (@ 25 °C,F#=1.0)

Field of View

37.2° × 50 °

Focal length

3.1 mm

IFOV (mrad)

5.48 mrad

Min. Focus Length

≥ 150 mm

Aperture

F 1.1

Image Display

Monitor

320 × 240 resolution 2.4’’ LCD display

Palettes

Black hot, White hot, Rainbow, Iron bow

Thermography

Rules

3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature

Thermometry Range

-20 °C to 550 °C (-4 °F to 1022 °F)

Thermometry Accuracy

Max (±2 °C, ±2%)

Thermometry Distance

D:S = 75:1

Battery

Battery Type

Rechargeable Lithium Battery

Battery Operating Time

8 hours continuous running

Functions

Laser Light

Support (Point to the thermography target)

Storage

Replaceable memory card (default 8G, support up to 128G storage)


Thermal image

Video

N.A.

Language

English

General

Power

3.7 V DC/0.4 A

Power Consumption

Less than 1.2 W

Hardware Interface

micro USB

Working Temperature

-10 °C to 50 °C (14 °F to 122 °F)

Protection level

IP54

Drop Test Height

2 m (6.56 feet)

Dimension

196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)

Weight

Approx. less than 350 g (0.77 lb)

Accessory

Power Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap
