DS-3E0105P-E/M

DS-3E0105P-E/M

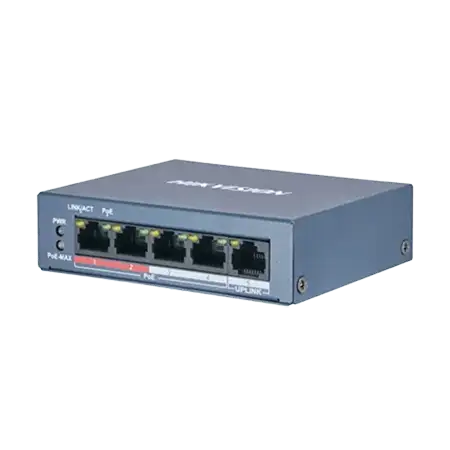

Hikvision 4-Port 100 Mbps Long-Range L2 Unmanaged PoE Switch, 1x 100M uplink port, 1K MAC address table, 802.3af/at, PoE power budget 35W, max. 250m long distance transmission, 48 VDC.

PoE Ports

4 x 100M PoE ports

Non-PoE Ports

1 x 10/100M Ethernet port

PoE Standard

Supports IEEE802.3at/af

PoE power budget

35W

Mac Address Table

1K

Switching Capacity

1 Gbps

Packet Forwarding Rate

0.744 Mpps

Shell

Metal material, fan-free design

Network Parameters

Port Number

4 x 100M PoE ports
1 x 100M Ethernet port

Port Type

RJ45 port
Full duplex
MDI/MDI-X adaptive

Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Processing type

Store and forward switching

Ports with high priority

1 to 2 ports

Ports for long distance transmission

1 to 4 ports

MAC Address Table

1 K

Exchange capacity

1 Gbps

Packet Forwarding Rate

0.744 Mpps

Internal cache

448 Kbits

PoE Power Supply

Power supply standard

IEEE 802.3af, IEEE 802.3at

Power supply cable core

Supports 8 core power supply

PoE port

1 to 4

Max. port power

30 W

Max. machine power

35 W

Mechanical Structure

Shell

Metal material, fan free design

Weight

0.2 kg (0.4 lb)

Dimensions (L × H × D)

105 mm × 27.6 mm × 83.1 mm (4.1" × 1.1" × 3.3")

Environment

Operating temperature

0 C to 40 C

Storage temperature

–40 C to 85 C

Relative humidity

5% to 95% (no condensation)

Power Supply

Power supply specification

48 VDC, 0.8 A
