DS-3E0106P-E/M

DS-3E0106P-E/M

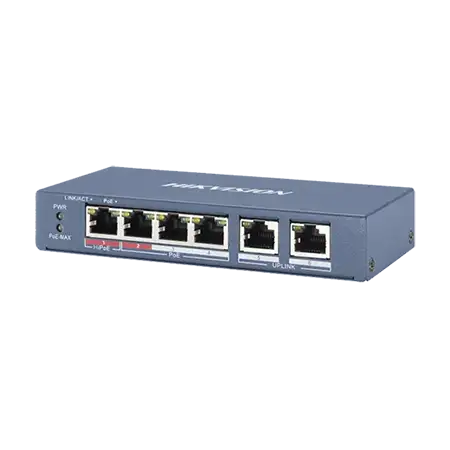

Hikvision L2 Unmanaged 4-Ports 10/100M RJ45 PoE Switch, 2-Ports 10/100M RJ45 uplink port, 802.3af/at, PoE power budget 35W, max. 300m long distance transmission, 6KV surge protection.

PoE Ports

4 x 100M PoE ports

Non-PoE Ports

2 x 100M RJ45 Uplink ports

PoE Standard

Supports IEEE802.3at/af

PoE power budget

35W

Mac Address Table

4K

Switching Capacity

1.6 Gbps

Packet Forwarding Rate

0.8928 Mpps

Shell

Metal material, fan-free design

Network Parameters

Port Number

4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports

Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding mode

Store-and-forward switching

Working Mode

Standard mode (default), Extend mode

High Priority Ports

Ports 1 and 2

Ports for long-distance transmission

Ports 1 to 4

MAC address table

4 K

Switching capacity

1.6 Gbps

Packet forwarding rate

0.8928 Mpps

Internal cache

768 Kbits

PoE Power Supply

PoE standard

Ports 1 to 4: IEEE 802.3af, IEEE 802.3at

PoE power pin

Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

PoE port

Ports 1 to 4

Max. port power

Ports 1 to 4: 30 W

PoE power budget

35 W

Dialing Function

Long range

Ports 1 to 4: up to 300 m

General

Shell

Metal material, fan-free design

Gross weight

0.52 kg (1.15 lb)

Net weight

0.265 kg (0.58 lb)

Dimension (L × H × D)

145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)

Operating temperature

-10°C to 40°C (14°F to 104°F)

Storage temperature

-40°C to 85°C (-40°F to 185°F)

Operating humidity

5% to 95% (no condensation)

Storage humidity

5% to 95% (no condensation)

Power supply

48 VDC, 0.8 A

Power consumption in idle

< 5 W

Max. power consumption

38 W

Power source

38 W
