DS-3E0109P-E/M

DS-3E0109P-E/M

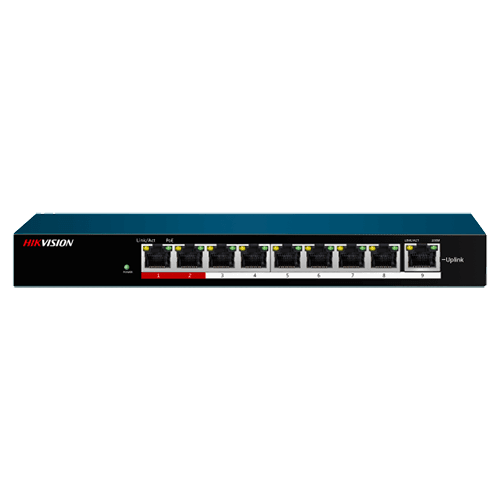

Hikvision L2 Unmanaged 8-port 100M PoE switch, 1x 100M uplink port, 802.3af/at, PoE power budget 58W, Store-and-forward switching, max. 51 VDC

PoE Ports

8 x 100M PoE ports

PoE Standard

IEEE802.3at/af

PoE power budget

58W

Mac Address Table

2 K

Switching Capacity

1.8 Gbps

Packet Forwarding rate

1.339 Mpps

Network Parameters

Port Number

8 x 100M PoE ports, 1 x 100M Ethernet port.

Port type

RJ45 port, Full duplex, MDI/MDI-X adaptive

Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Processing type

Store-and-forward switching

Ports with high priority

1 to 2 ports

Ports for long- distance transmission

1 to 8 ports

MAC address table

2 K

Exchange capacity

1.8 Gbps

Packet forwarding rate

1.339 Mpps

Internal cache

1 Mbits

Poe Power Supply

Power Supply Standard

IEEE 802.3af, IEEE 802.3at

Power Supply Cable Core

Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply

PoE Port

1 to 8

Max. port power

30 W

Max. machine power

58 W

Mechanical Structure

Shell

Metal material, fan-free design

weight

0.35 kg (0.77 lb)

Dimensions (L × H × D)

170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)

Environment

Operating temperature

0 C to 40 C

Storage temperature

–40 C to 85 C

Relative humidity

5% to 95% (no condensation)

Power supply

Power Supply Specification

51 VDC, 1.35 A
