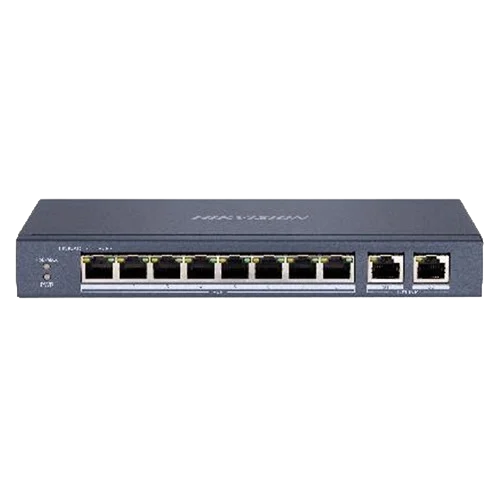

Hikvision L2 Unmanaged Switch, 8 10/100M RJ45 PoE ports, 2 Gigabit RJ45 uplink ports, 802.3af/at, PoE power budget 60W, max. 300m long distance transmission, 6KV surge ,48 VDC, 1.35A

PoE Ports

8 x 10/100 Mbps PoE ports

Non-PoE Ports

2 x 10/100/1000 Mbps uplink RJ45 port

PoE Standard

Supports IEEE802.3at/af

PoE power budget


Mac Address Table

16 K

Switching Capacity

5.6 Gbps

Packet Forwarding Rate

4.1664 Mpps

Working Modes

 Standard and Extend Mode

Network Parameters

Port Number

8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports

Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive


IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab

Forwarding mode

Store-and-forward switching

Working mode

Standard mode (default), Extend mode

Ports for long-distance transmission

Ports 1 to 8

MAC address table

16 K

Switching capacity

5.6 Gbps

Packet forwarding rate

4.1664 Mpps

Internal cache

4 Mbits

Internal cache

768 Kbits

PoE Power Supply

PoE standard

Ports 1 to 8: IEEE 802.3af, IEEE 802.3at

PoE power pin

Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

PoE port

Ports 1 to 8

Max. port power

Ports 1 to 8: 30 W

PoE Power Budget

60 W

Dialing function

Long range

Ports 1 to 8: up to 300 m.



Metal material, fan-free design

Gross weight

1.20 kg (2.65 lb)

Net weight

0.555 kg (1.22 lb)

Dimension (L × H × D)

217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)

Operating temperature

-10°C to 40°C (14°F to 104°F)

Storage temperature

-40°C to 85 °C -40°F to 185°F)

Operating humidity

5% to 95% (no condensation)

Storage humidity

5% to 95% (no condensation)

Power supply

48 VDC, 1.35 A

Power consumption in idle

< 5 W

Max. power consumption

65 W

Power source

65 W
