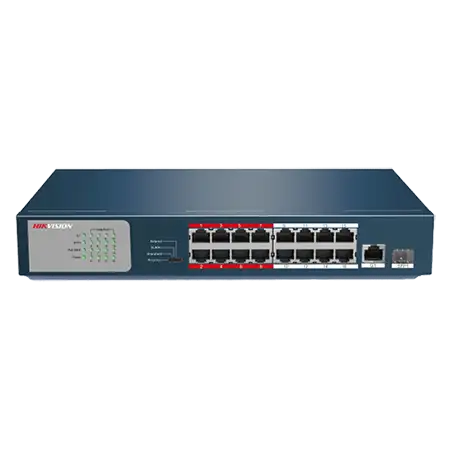

Hikvision L2 Unmanaged PoE Switch - 16 10/100M PoE Ports, 1 Gigabit RJ45 uplink port, 1 Gigabit SFP uplink port, 802.3af/at, PoE power budget 135W, "Extend" Mode: ports 9-16, max. 250m long distance transmission

PoE Ports

16 x 10/100 Mbps PoE ports

Non-PoE Ports

1 x 10/100/1000 Mbps uplink ethernet port

SFP Port

1 x 10/100/1000 Mbps uplink SFP port

PoE Standard

IEEE 802.3 af & at high POE power supply

Power Budget

135 W

Switching Capacity

7.2 Gbps

Mac Address Table


Network Modes

 Priority, Standard, Isolate and Extend

Network Parameters

10/100 Mbps RJ45


10/100/1000 Mbps RJ45


1000 Mbps SFP

1 independent

High-priority Port

Port 1 - 8

Transmission Speed

Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex)

Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex)

Gigabit Ethernet: 2000 Mbps (Full Duplex)

Transmission Medium

Ethernet: Cat 3 or better UTP/STP

Fast Ethernet: Cat 5 or better UTP/STP Gigabit Ethernet: Cat 5 or better UTP/STP

1000 Base-SX: MMF (Multimode optical fiber)

1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)

Network Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE





MAC Address Table

4 k

MAC Learning

Auto-learning / Auto-aging

Switching Capacity

7.2 Gbps

PoE Power

PoE standard

IEEE 802.3af, IEEE802.3at

PoE Powering Mode

Supports 8-pin power supply

PoE Port

1 - 16

Maximum Port Output

30 W

Maximum Total Output

135 W


Operating Environment

Operating Temperature: 0 °C ~ 40 °C

Operating Humidity: 10% - 90% RH non-condensing

Storage Environment

Storage Temperature: -40 °C ~ 70 °C

Storage Humidity: 5% - 90% RH non-condensing
