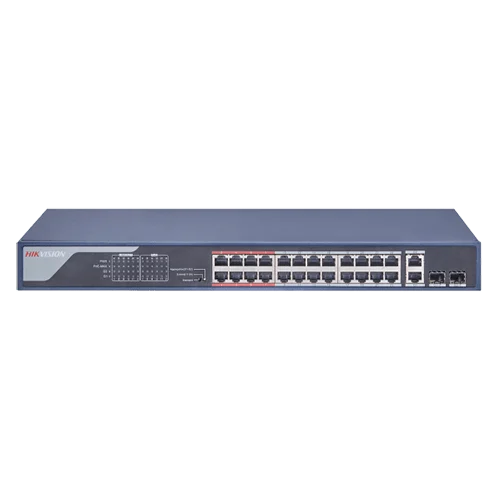

DS-3E0326P-E

Hikvision L2, Unmanaged, 24 10/100M RJ45 PoE ports, 2 × 1000 Mbps combos, 802.3af/at, PoE power budget 225W, "Extend" Mode: ports 17-24 250m, 100 to 240 VAC, 50/60 Hz

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

PoE Ports

24 × 100 Mbps PoE ports

Combo Port

2 × 1000 Mbps combos

PoE Standard

IEEE 802.3at/af PoE Compliant

Power Budget

370 W

Switching Capacity

8.8 Gbps

Mac Address Table

4 K

Network Parameters

Port Number

24 × 100 Mbps PoE ports, 2 × 1000 Mbps combos

Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding mode

Store-and-forward switching

Working mode

Standard mode (default); Extend mode

High priority ports

Ports 1 to 8

Ports for long-distance transmission

Ports 17 to 24

Link aggregation port

G1 to G2

MAC address table

4 K

Switching capacity

8.8 Gbps

Packet forwarding rate

6.547 Mpps

Internal cache

2.75 Mbits

Poe Power Supply

PoE standard

IEEE 802.3af, IEEE 802.3at

PoE power pin

Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply

Ports for close-range transmission (1-16) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply

PoE port

Ports 1 to 24

Max. port power

30 W

PoE power budget

370 W

Max. power consumption

400 W

General

Shell

Metal material

Gross weight

3.62 kg (7.98 lb)

Net weight

2.75 kg (6.06 lb)

Dimension (L × H × D)

440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.7”)

Operating temperature

-10 °C to 55 °C (14 °F to 131 °F)

Storage temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity

5% to 95% (no condensation)

Storage humidity

5% to 95% (no condensation)

Power supply

100 to 240 VAC, 50/60 Hz, Max. 6.5 A

Power consumption in idle
