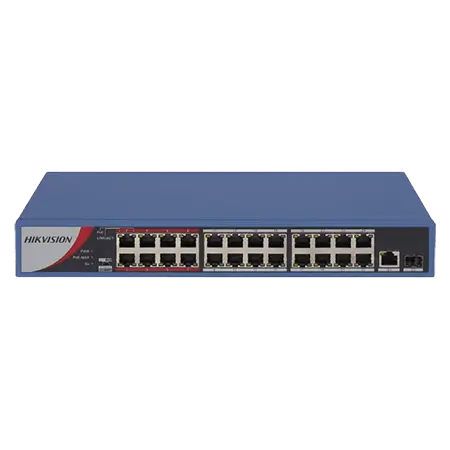

DS-3E0326P-E/M

Network Parameters

Port number

24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port

Port type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding mode

Store-and-forward switching

Working mode

Standard mode (default); Extend mode

High priority ports

Ports 1 to 8

Ports for long-distance transmission

Ports 17 to 24

MAC address table

4 K

Switching capacity

8.8 Gbps

Packet forwarding rate

6.547 Mpps

Internal cache

2.75 Mbits

PoE power supply

PoE standard

IEEE 802.3af, IEEE 802.3at

PoE power pin

Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.

Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

PoE port

Ports 1 to 24

Max. port power

30 W

PoE power budget

230 W

Max. power consumption

250 W

General

Shell

Metal material

Gross weight

3.33 kg (7.34 lb)

Net weight

2.55 kg (5.6 lb)

Dimension (L × H × D)

335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)

Operating temperature

-10 °C to 55 °C (14 °F to 131 °F)

Storage temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity

5% to 95% (no condensation)

Storage humidity

5% to 95% (no condensation)

Power supply

100 to 240 VAC, 50/60 Hz, Max. 4 A

Power consumption in idle

20 W

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
