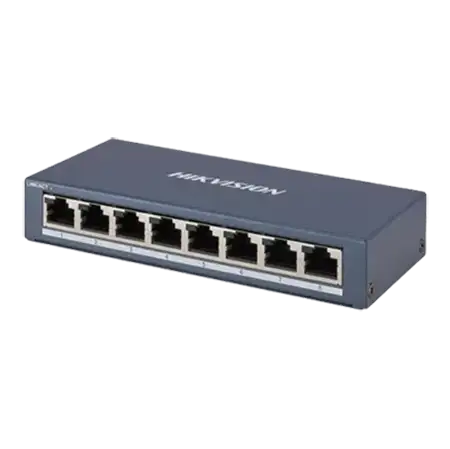

DS-3E0508-E

General

Shell

Metal material, fan-free design

Net Weight

0.25 kg (0.60 lb)

Gross Weight

0.38 kg (0.84 lb)

Dimensions (W × H × D)

145.0 mm × 25.6 mm × 68.4 mm (5.7'' × 1.0'' × 2.7'')

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

–40˚C to 85˚C (–40˚F to 185˚F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

5 V DC, 1 A

Installation Mode

Metal material, fan-free design

Network Parameters

Ports

8 × Gigabit RJ45 port

MAC Address Table

4 K

Switching Capacity

16 Gbps

Packet Forwarding Rate

11.90 Mpps

Internal Cache

1.50 Mbits

Approval

EMC

FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
