DS-3E0510HP-E

DS-3E0510HP-E

Hikvision DS-3E0510HP-E 8 Port Gigabit Unmanaged POE Switch, 6 × gigabit PoE port, 2 × gigabit Hi-PoE port, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port, iEEE 802.3at/af/bt standard for Hi-PoE ports, IEEE 802.3at/af standard for PoE ports, Wire-speed forwarding, Store-and-forward switching, MAC Address Table: 4 K, Switching Capacity: 20 Gbps, Packet Forwarding Rate: 14.88 Mpps, Internal Cache: 1.5 Mbits, 110W PoE Power Budget, 54 VDC.

Hi-PoE PoE Ports

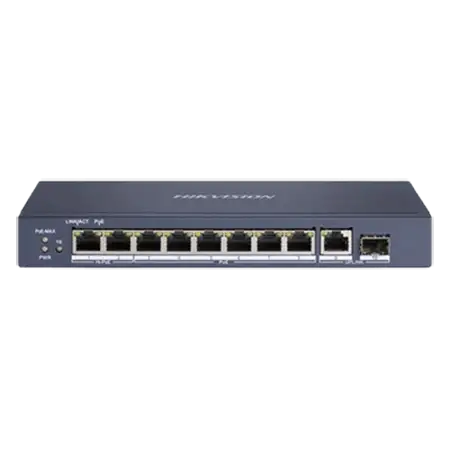

Hikvision DS-3E0510HP-E 8 Port Gigabit Unmanaged POE Switch

PoE Ports

6× gigabit PoE port, 2× gigabit Hi-PoE port, 1× gigabit RJ45 port, & 1× gigabit fiber optical port.

PoE Standard

IEEE 802.3at/af/bt standard for Hi-PoE ports & IEEE 802.3at/af standard for PoE ports

PoE Power Budget

110W PoE Power Budget

Network Parameters

MAC Address Table: 4K, Switching Capacity: 20 Gbps, Packet Forwarding Rate: 14.88Mpps

PoE Watchdog

PoE watchdog to auto detect and restart the cameras that do not respond.

General

Shell

Metal material, fan-free design

Net Weight

0.59 kg (1.30 lb)

Dimensions (W × H × D)

217.6 mm × 108.55 mm × 27.8 mm (8.57'' × 4.27'' × 1.09'')

Gross Weight

0.71 kg (1.57 lb)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

54 V DC, 2.22 A

Max. Power Consumption

120 W

Power Consumption in Idle

10 W

Installation Mode

Desk-Mounted

Surge Protection

6 kV

Network Parameters

Ports

8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table

4 K

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

Internal Cache

1.5 Mbits

PoE Power Supply

PoE Standard

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

Hi-PoE: Ports 1 to 2

PoE: Ports 3 to 8

Max. Port Power

Ports 1 and 2: 90 W

Ports 3 to 8: 30 W

PoE Power Budget

110 W

Dialing Function

Long Range

Ports 7 to 8: up to 300 m

Long range performance may vary depend on camera model or cable condition.

Port Isolation

Ports 1 to 8: port isolation mode to improve network security.

PoE Watchdog

Ports 1 to 8: auto detect and restart the cameras that do not respond.

Approval

EMC

FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU)
