DS-3E0510P-E

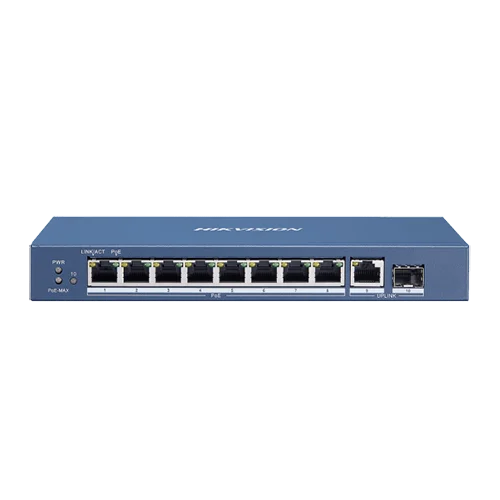

Hikvision 8-Port Gigabit L2 Unmanaged PoE Switch, 1 Gigabit RJ45 uplink port, 1 Gigabit SFP uplink port, 802.3af/at, Store-and-forward switching, PoE power budget 110w

https://www.esco.pk/web/image/product.template/3500/image_1920?unique=43813e3

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Hikvision

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    PoE Ports

    8 × gigabit PoE ports

    SFP SLot

     1 × gigabit SFP fiber optical port

    PoE Standard

    IEEE 802.3at/af standard

    PoE Power Budget

    110 W

    Mac Address Table

     4 K

    Switching Capacity

    20 Gbps

    Network Parameters

    Port number

    8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port

    Port type

    RJ45 port, full duplex, MDI/MDI-X adaptive

    Standard

    IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

    Forwarding mode

    Store-and-forward switching

    MAC address table

    4 K

    Switching capacity

    20 Gbps

    Packet forwarding rate

    14.88 Mpps

    Internal cache

    1.5 Mbits

    PoE Power Supply

    PoE standard

    IEEE 802.3af, IEEE 802.3at

    PoE power pin

    Support 4-core power supply, and Ethernet cable 1/2/3/6 provide power supply.

    PoE port

    Ports 1 to 8

    Max. port power

    30 W

    PoE power budget

    110 W

    Max. power consumption

    120 W

    General

    Shell

    Metal material, fan-free design

    Gross weight

    1.4 kg (3.09 lb)

    Net weight

    0.6 kg (1.32 lb)

    Dimension (L × H × D)

    217.6 mm × 27.8 mm × 108.55 mm (8.6” × 1.1” × 4.3”)

    Operating temperature

    -10 °C to 55 °C (14 °F to 131 °F)

    Storage temperature

    -40 °C to 85 °C (-40 °F to 185 °F)

    Operating humidity

    5% to 95% (no condensation)

    Storage humidity

    5% to 95% (no condensation)

    Power supply

    48 VDC, 2.5 A

    Power consumption in idle

    10 W
