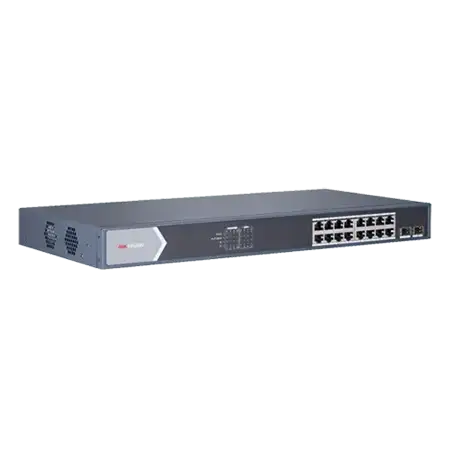

DS-3E0518P-E/M

Network Parameters

Port number

16 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports

Port type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding mode

Store-and-forward switching

MAC  address table

8 K

Switching capacity

36 Gbps

Packet forwarding rate

26.784 Mpps

Internal cache

4.1 Mbits

PoE Power Supply

PoE standard

IEEE 802.3af, IEEE 802.3at

PoE power pin

Ethernet cable 1/2/3/6 provide power supply.

PoE port

Ports 1 to 16

Max. port power

30 W

PoE power budget

125 W

Max. power consumption

150 W

General

Shell

Metal material, no fan equipped

Net weight

2.500 kg (5.51 lb)

Gross weight

3.570 kg (7.87 lb)

Dimension

440 mm × 44 mm × 220.8 mm

Operating temperature

-10 °C to 55 °C (14 °F to 131 °F)

Storage temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity

5% to 95% (no condensation)

Storage humidity

5% to 95% (no condensation)

Power supply

100 to 240 VAC, 50/60 Hz, 2.5 A (Max)

Power consumption in idle

25 W
