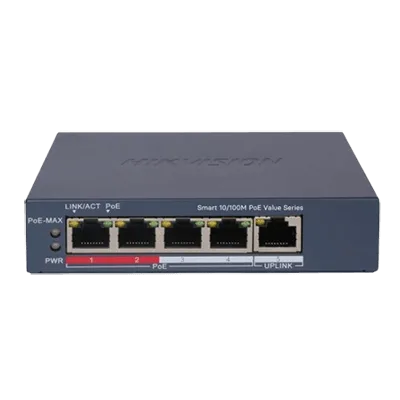

DS-3E1105P-EI/M

Hikvision DS-3E1105P-EI/M 4 Port Fast Ethernet Smart POE Switch, 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port, Total PoE Power Budget, 45W, Support 802.1Q VLAN, Support PoE watchdog to detect and restart the cameras that do not respond, Support STP/RSTP Loop prevention, Support cable detection to locate failure, Up to 300 m Long Range PoE Transmission, MAC Address Table: 2K, Switching Capacity: 1.2Gbps, Packet Forwarding Rate: 0.89Mpps, Internal Cache: 768 Kbits, 6KV Surge Protection.

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

Smart PoE Switch

Hikvision DS-3E1105P-EI/M 4 Port Fast Ethernet Smart POE Switch

Ports

4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Budget

Total PoE Power Budget 45W

Network Parameters

MAC Add. Table: 2K, Switching Capacity: 1.2 Gbps, Packet Forwarding Rate: 0.89Mpps

Software Function

Support 802.1Q VLAN, Support PoE watchdog, STP/RSTP Loop prevention

General

Shell

Metal material, fan-free design

Net Weight

0.26 kg (0.573 lb)

Gross Weight

0.75 kg (1.65 lb)

Dimensions (W × H × D)

121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

54 V DC, 0.92 A

Installation Mode

Desk-Mounted, Wall-Mounted

Max. Power Consumption

50 W

Power Consumption in Idle

5 W

Surge Protection

6 kV

Network Parameters

Ports

4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port

MAC Address Table

2 K

Switching Capacity

1.2 Gbps

Packet Forwarding Rate

0.89 Mpps

Internal Cache

768 Kbits

PoE Power Supply

PoE Standard

IEEE 802.3af, IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 4

Max. Port Power

30 W

PoE Power Budget

45 W

Software Function

Port Isolation

Ports 1 to 4: port isolation mode to improve network security

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1 to 4: auto detect and restart the cameras that do not respond.

Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation. Support 1 aggregation group.

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP. Suppport 802.1w RSTP.

VLAN

VLAN is used for network scale planning and network health improvement. Support 802.1Q.

Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.

Long Range

Ports 1 to 4: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

Display the port rate.

Display the port bandwidth utilization rate.

Display the PoE power usage.

Display topology information.

Display the alarm status.

Restart ports and devices.

Enable port long-rage mode.

Remotely upgrade the device.

System Maintenance

Support remote management via Hik-Partner Pro.

VIP Port

Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU), WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
