DS-3E1510P-SI

DS-3E1510P-SI

Hikvision DS-3E1510P-SI 8 Port Gigabit Smart POE Switch, 8 Gigabit PoE Ports, 2 Gigabit fiber optical ports, full duplex, MDI/MDI-X adaptive, Store-and-Forward switching, 8K MAC Address Table, 20Gbps Switching Capacity, 14.88 Mpps Packet Forwarding Rate, 4.1 Mbits Internal Cache, PoE watchdog to Auto detect-and-Restart the cameras, Network topology management, alarm push, network health monitor, Port rate configuration, flow control, and ports enabling, IEEE 802.3at/af standard PoE ports, Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS, 6 KV surge protection.

Smart PoE Switch

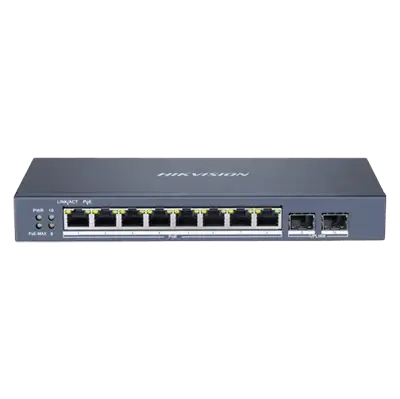

Hikvision DS-3E1510P-SI 8 Port Gigabit Smart POE Switch

Ports

8 × gigabit PoE ports, and 2 × gigabit fiber optical ports.

PoE Standard

IEEE 802.3at/af standard for PoE ports.

PoE Power Budget

Total PoE Power Budget 110W

Network Parameters

MAC Add. Table: 8K, Switching Capacity: 20 Gbps, Packet Forwarding Rate: 14.88Mpps

Software Function

Loop Prevention,  STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

PoE Power Supply



PoE Standard

IEEE 802.3af, IEEE 802.3at



PoE Power Pin

End-span: 1/2(-), 3/6(+)

Mid-span: 4/5(+), 7/8(-)

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)



PoE Port

PoE: Ports 1 to 8



Max. Port Power

Port 1 to 8: 30 W



PoE Power Budget

110 W



Network Parameters



Port Number

8 × gigabit PoE port, and 2 × gigabit fiber optical port



Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive



Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z



Forwarding Mode

Store-and-forward switching



Working Mode

Standard mode (default) Extend mode



MAC Address Table

8 K



Switching Capacity

20 Gbps



Packet Forwarding Rate

14.88 Mpps



Internal Cache

4.1 Mbits



Software Function



Device Maintenance

Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync



Port Configuration

Port rate configuration, flow control, and ports enabling



Long Range

Up to 300 m transmission



PoE Configuration

PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.

PoE enabling: Support



Port Rate-Limiting

Rate-limiting for ingress and egress ports



Storm Control

Storm control of unknown unicast, multicast and broadcast



Port Mirroring

Support



Link Aggregation

Static link aggregation supported



Port Isolation

Ports in isolation group cannot communicate with each other.



QoS

WRR and SP scheduling and port priority



VLAN

4094 VLANs



STP

STP and RSTP protocols



SNMP

SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces



LLDP

LLDP protocol supported for port configuration, global configuration and neighbor discovery



General



Shell

Metal material



Net Weight

1.21 kg (2.67 lb)



Gross Weight

1.3 kg (2.87 lb)



Dimension (W × H × D)

217.6 mm × 27.8 mm × 108.55 mm (8.57” × 1.09” × 4.27”)



Operating Temperature

-10°C to 55°C (14°F to 131°F)



Storage Temperature

-40°C to 85°C (-40°F to 185°F)



Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

48 VDC, 2.5 A

Max. Power Consumption

120 W

Power Consumption in Idle

7 W

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1:

2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009

+A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
